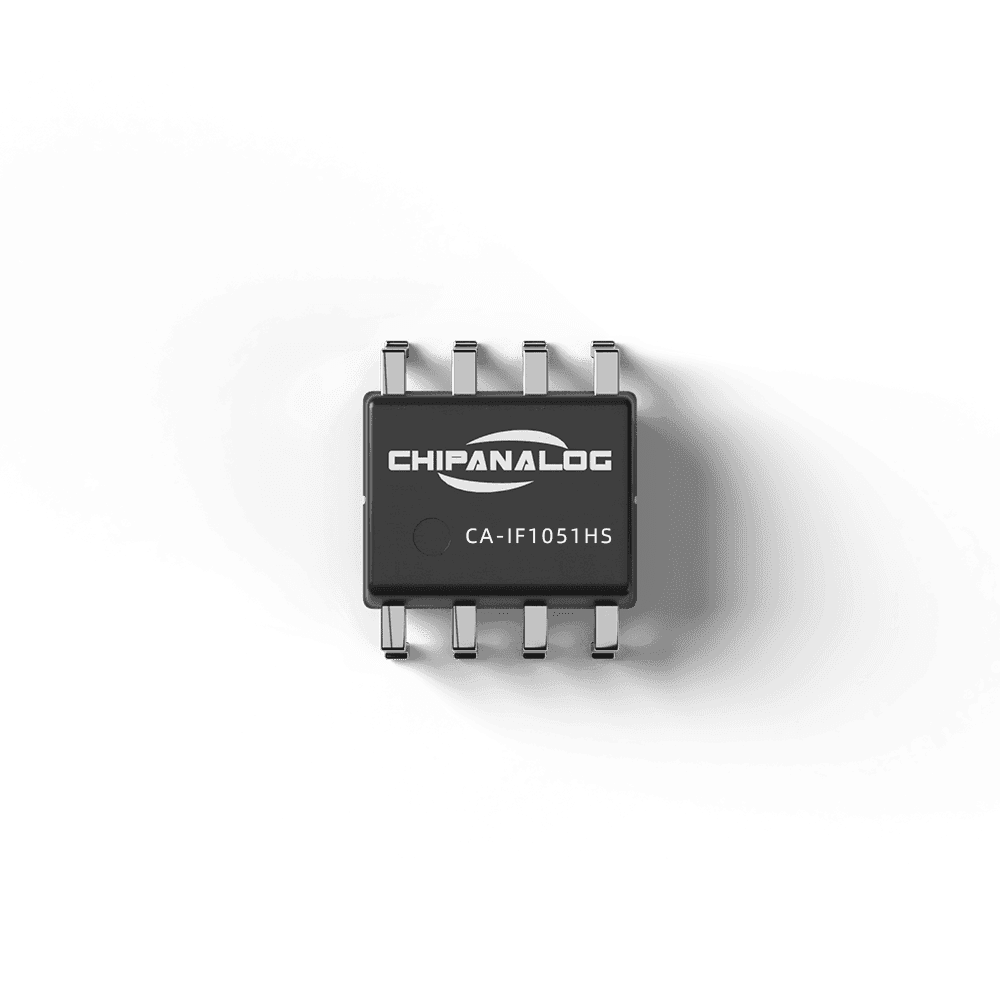

Peer-catalog product rendering of Chipanalog CA-IF1051HS in SOIC-8
Exact-part technical visualProduct reference1 of 2
Exact MPN19 sourced attributes1 manufacturer document

Chipanalog · exact orderable part

CA-IF1051HS

5 V CAN/CAN FD transceiver supporting up to 5 Mbit/s in an SOIC8 package.

Supported CAN Standard
ISO 11898-2:2016; ISO 11898-5:2007
Maximum Data Rate
5 Mbit/s
Galvanic Isolation
No
Package / Case
SOIC8
Minimum Supply Voltage
4.5 V
Maximum Supply Voltage
5.5 V
China-origin manufacturerCommercial terms confirmed per lot
ManufacturerChipanalog
Package / caseSOIC8
Mounting typesurface mount
Lifecycleactive
Packing2500/reel
Temperature gradeTj -55 to 150 °C

Technical parameters

Technical specifications

19 normalized values · 1 manufacturer source

Report a data issue
ParameterValue
Supported CAN StandardISO 11898-2:2016; ISO 11898-5:2007 [1]
Maximum Data Rate5 Mbit/s [1]
Galvanic IsolationNo [1]
Package / CaseSOIC8 [1]
Minimum Supply Voltage4.5 V [1]
Maximum Supply Voltage5.5 V [1]
CAN Bus Fault Protection Range-70 to +70 V [1]
Receiver Common-Mode Input Range-30 to +30 V [1]
Typical Loop Delay130 ns [1]
Junction Temperature Range-55 to 150 °C [1]
Junction-to-Ambient Thermal Resistance125 °C/W [1]
CAN-Pin ESD Rating (HBM)6000 V [1]
ESD Rating (CDM)1500 V [1]
Package Dimensions4.9 × 3.9 mm [1]
Pin Count8 [1]
Silent ModeYes [1]
TXD Dominant TimeoutYes [1]
Thermal ShutdownYes [1]
Undervoltage LockoutYes [1]
Specification references[1]Chipanalog CA-IF1051HS Datasheet, Version 1.02, 2022-03-07 ↗

Product overview

CA-IF1051HS at a glance

Chipanalog CA-IF1051HS is an exact orderable can transceivers device in SOIC8. The reviewed technical record lists supported can standard of ISO 11898-2:2016; ISO 11898-5:2007 and maximum data rate of 5 Mbit/s.

Key features

Verified device capabilities

  • Supported CAN Standard: ISO 11898-2:2016; ISO 11898-5:2007 under the cited manufacturer conditions.
  • Maximum Data Rate: 5 Mbit/s under the cited manufacturer conditions.
  • Galvanic Isolation: false under the cited manufacturer conditions.
  • Package / Case: SOIC8 under the cited manufacturer conditions.
  • Minimum Supply Voltage: 4.5 V under the cited manufacturer conditions.

Applications

Where the device is used

  • Electronic designs whose requirements match the documented supported can standard, maximum data rate, galvanic isolation.

Ordering information

Exact code and packing

CA-IF1051HS identifies the exact Chipanalog order code in SOIC8 with 2500/reel packing recorded; current lot terms are confirmed in the quotation.

Design notes

Use the rating in context

Use the cited operating conditions for CA-IF1051HS; do not convert an absolute maximum, headline rating or family-level value into an unconditional board-level guarantee.

Quotation and fulfillment

What is confirmed before an order

Commercial facts belong to the quoted lot. The catalog does not invent live stock, price, date code or lead time.

01

Exact-part check

Manufacturer, full suffix, package, quantity and requested documentation are captured in the RFQ.

02

Lot-level quotation

Price, available quantity, date code, condition and lead time are written into the quotation when confirmed.

03

Inspection request

Label, marking, packing and traceability requirements can be specified before shipment.

04

Shipping and payment

Shipping method, Incoterm and available payment route are agreed in the commercial offer.

Technical and ordering FAQ

Questions buyers ask about CA-IF1051HS

Answers distinguish the IC itself from assembled modules and keep absolute limits separate from normal operating conditions.

What package does CA-IF1051HS use?

CA-IF1051HS is recorded in SOIC8. Confirm the complete suffix and packing in the quotation.

What is the documented supported can standard?

The cited manufacturer record lists ISO 11898-2:2016; ISO 11898-5:2007. Apply the source's test and operating conditions.

How should the maximum data rate be interpreted?

The normalized catalog value is 5 Mbit/s. The linked evidence controls its exact conditions and revision.

Does this page prove current CA-IF1051HS stock?

No. Technical evidence identifies the device; stock, date code, price, MOQ and lead time require a current verified offer or quotation.

Can CA-IF1051HS be replaced by a similar part without review?

No automatic drop-in claim is made. Compare electrical limits, package, pinout, functions and qualification before substitution.
