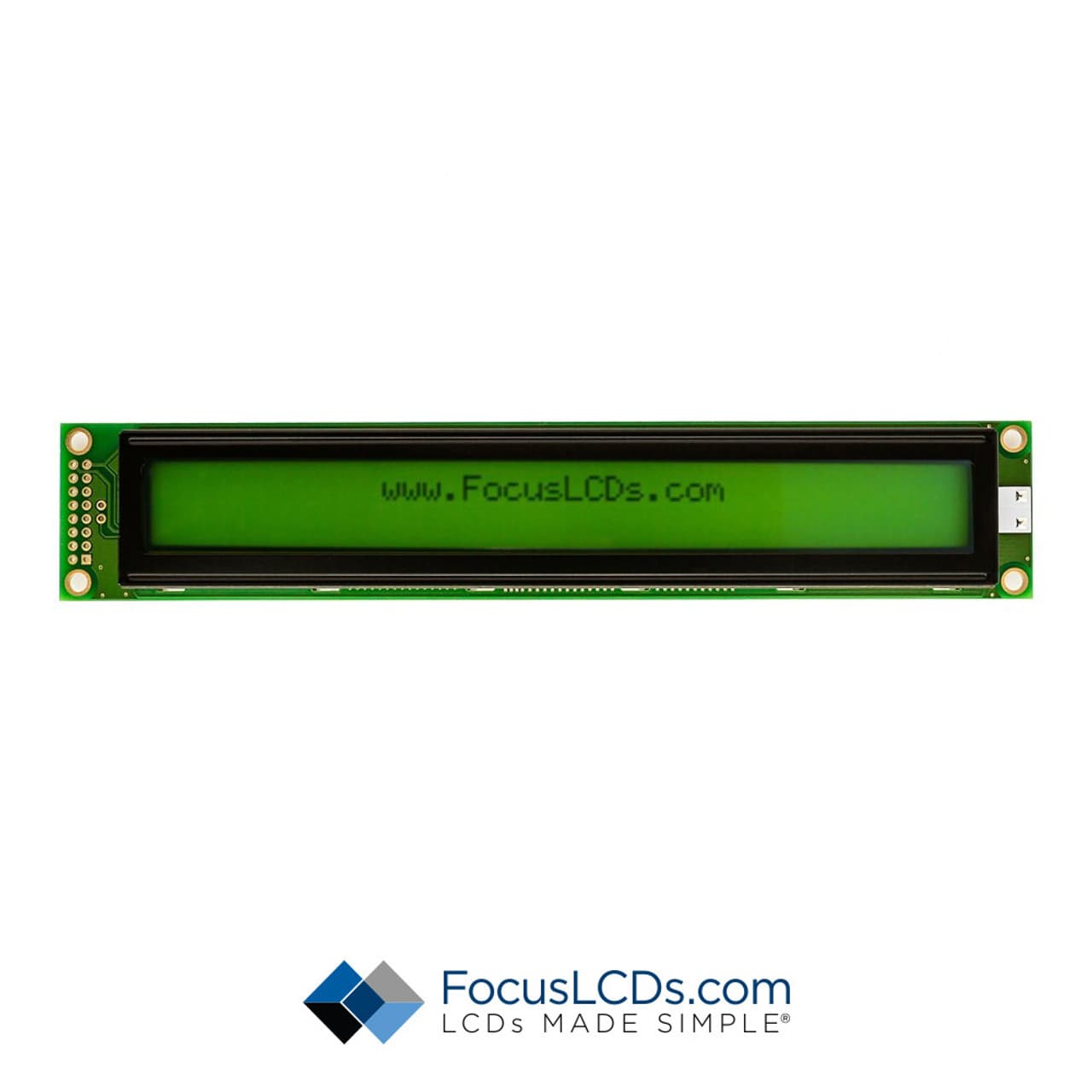

C402A-YTY-LW63 representative package visual — not an exact-product photograph

Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image

Exact MPN19 sourced attributes1 source document

Focus LCDs · exact orderable part

C402A-YTY-LW63

40X2 STN YELLOW/GREEN CHARACTER

Background Color: Yellow/Green
Backlight: LED - Yellow
Character Format: 5 x 8 Dots
Character Size: 5.55mm H x 3.20mm W
Controller Type: ST7066U
Display Format: 40 x 2

Original manufacturerCommercial terms confirmed per lot

ManufacturerFocus LCDs

Mounting typeunknown

PackingTape & Box (TB)

Technical parameters

Technical specifications

19 normalized values · 1 validated source

Report a data issue

C402A-YTY-LW63 technical parameters
Parameter	Value
Background Color	Yellow/Green [1]
Backlight	LED - Yellow [1]
Character Format	5 x 8 Dots [1]
Character Size	5.55mm H x 3.20mm W [1]
Controller Type	ST7066U [1]
Display Format	40 x 2 [1]
Display Mode	Transflective [1]
Display Type	STN - Super-Twisted Nematic [1]
Dot Size	0.60mm W x 0.65mm H [1]
Interface	Parallel [1]
Mfr	Focus LCDs [1]
Number of Characters	80 [1]
Operating Temperature	-20°C ~ 70°C [1]
Outline L x W x H	182.00mm x 33.50mm x 13.50mm [1]
Product Status	Active [1]
Series	C402A [1]
Text Color	Black [1]
Viewing Area	152.50mm L x 16.50mm W [1]
Voltage - Supply	3.3V [1]

Specification references[1]Focus LCDs C402A-YTY-LW63 vendor product record ↗
