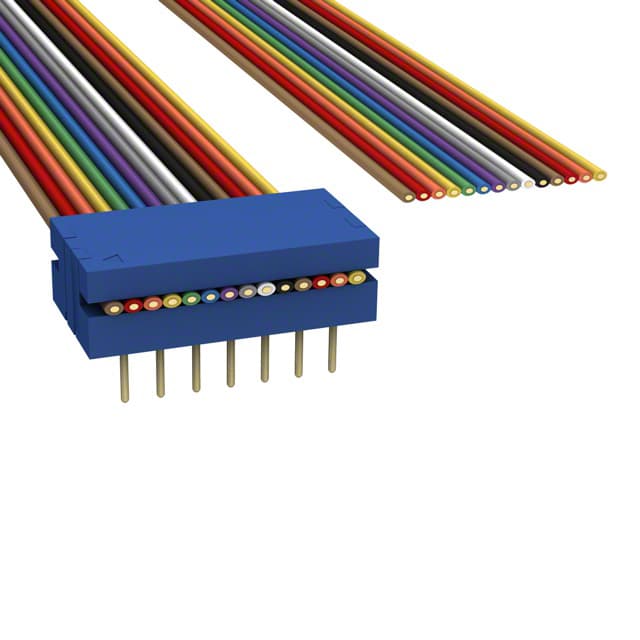

C2PXG-1406M representative package visual — not an exact-product photograph
Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image1 of 2
Exact MPN15 sourced attributes1 source document

CW Industries · exact orderable part

C2PXG-1406M

DIP CABLE - CDP14G/AE14M/X

Cable Termination
IDC
Base Product Number
C2PXG-1
Color
Multiple, Ribbon
Connector Type
DIP to Cable
Contact Finish
Gold
Contact Finish Thickness
10.0µin (0.25µm)
Original manufacturerCommercial terms confirmed per lot
ManufacturerCW Industries
PackingBulk

Technical parameters

Technical specifications

15 normalized values · 1 validated source

Report a data issue
ParameterValue
Cable TerminationIDC [1]
Base Product NumberC2PXG-1 [1]
ColorMultiple, Ribbon [1]
Connector TypeDIP to Cable [1]
Contact FinishGold [1]
Contact Finish Thickness10.0µin (0.25µm) [1]
Length0.500' (152.40mm, 6.00") [1]
MfrCW Industries [1]
Number of Positions14 [1]
Number of Rows2 [1]
Pitch - Cable0.050" (1.27mm) [1]
Pitch - Connector0.100" (2.54mm) [1]
Product StatusActive [1]
ShieldingUnshielded [1]
UsageSocket (0.3"), Board In [1]
Specification references[1]CW Industries C2PXG-1406M vendor product record ↗
