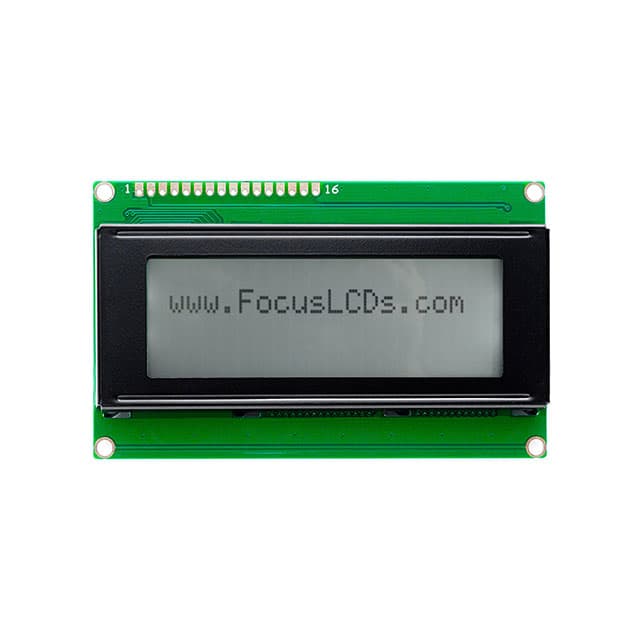

Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image

Exact MPN18 sourced attributes1 source document

Focus LCDs · exact orderable part

C204ADBFGN06WR30XAA

Name: C204ADBFGN06WR30XAA
Brand: Focus LCDs

20X4 FSTN GRAY CHARACTER LCD

Original manufacturerCommercial terms confirmed per lot

ManufacturerFocus LCDs

Mounting typeunknown

PackingBox

Technical parameters

Technical specifications

18 normalized values · 1 validated source

C204ADBFGN06WR30XAA technical parameters
Parameter	Value
Background Color	Gray [1]
Backlight	Without Backlight [1]
Character Format	5 x 7 Dots [1]
Character Size	4.75mm H x 2.96mm W [1]
Controller Type	ST7066U [1]
Display Format	20 x 4 [1]
Display Mode	Reflective [1]
Display Type	FSTN - Film Super-Twisted Nematic [1]
Dot Size	0.55mm W x 0.55mm H [1]
Interface	Parallel [1]
Mfr	Focus LCDs [1]
Number of Characters	80 [1]
Operating Temperature	-20°C ~ 70°C [1]
Outline L x W x H	98.00mm x 60.00mm x 14.00mm [1]
Product Status	Active [1]
Text Color	Black [1]
Viewing Area	76.00mm L x 26.00mm W [1]
Voltage - Supply	3.3V [1]

Catalog relationships

This page describes one orderable part. A family page helps select suffixes but never carries assumed stock or a price.
