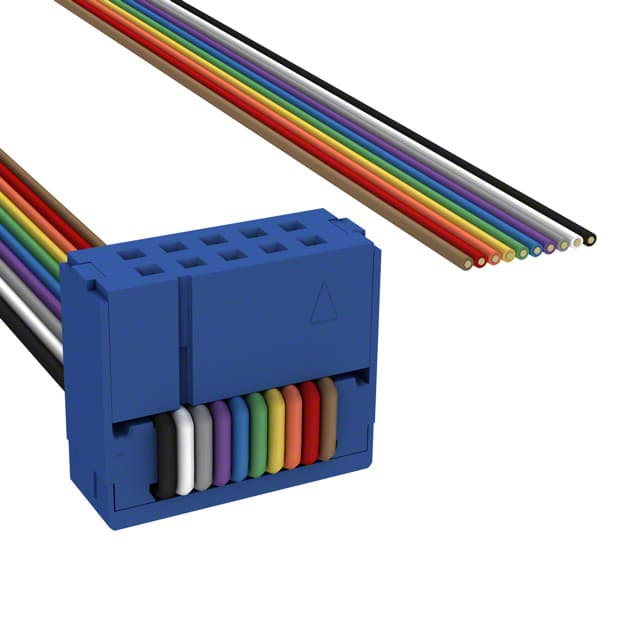

C1BXG-1036M representative package visual — not an exact-product photograph
Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image1 of 2
Exact MPN15 sourced attributes1 source document

CW Industries · exact orderable part

C1BXG-1036M

IDC CABLE - CSR10G/AE10M/X

Cable Termination
IDC
Base Product Number
C1BXG-1
Color
Multiple, Ribbon
Connector Type
Socket to Cable
Contact Finish
Gold
Contact Finish Thickness
10.0µin (0.25µm)
Original manufacturerCommercial terms confirmed per lot
ManufacturerCW Industries
PackingBulk

Technical parameters

Technical specifications

15 normalized values · 1 validated source

Report a data issue
ParameterValue
Cable TerminationIDC [1]
Base Product NumberC1BXG-1 [1]
ColorMultiple, Ribbon [1]
Connector TypeSocket to Cable [1]
Contact FinishGold [1]
Contact Finish Thickness10.0µin (0.25µm) [1]
FeaturesStrain Relief [1]
Length3.00' (914.40mm) [1]
MfrCW Industries [1]
Number of Positions10 [1]
Number of Rows2 [1]
Pitch - Cable0.050" (1.27mm) [1]
Pitch - Connector0.100" (2.54mm) [1]
Product StatusActive [1]
ShieldingUnshielded [1]
Specification references[1]CW Industries C1BXG-1036M vendor product record ↗
