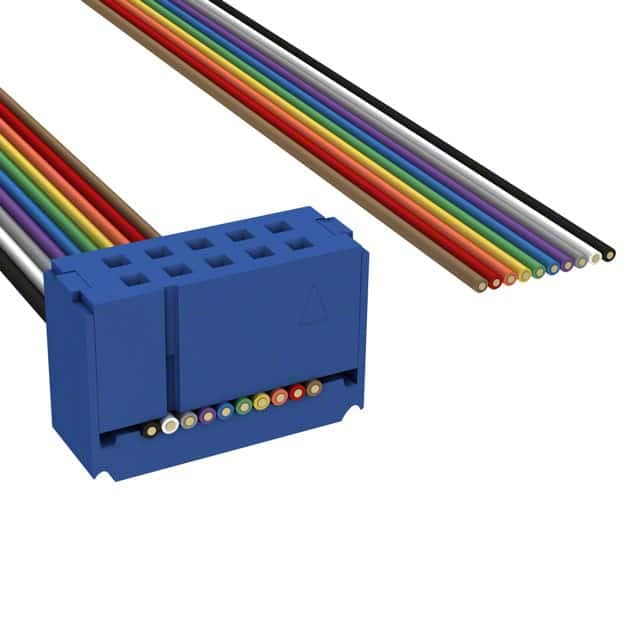

C1AXS-1036M representative package visual — not an exact-product photograph

Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image1 of 2

Exact MPN14 sourced attributes1 source document

CW Industries · exact orderable part

C1AXS-1036M

IDC CABLE - CSC10S/AE10M/X

Cable Termination: IDC
Base Product Number: C1AXS-1
Color: Multiple, Ribbon
Connector Type: Socket to Cable
Contact Finish: Tin
Contact Finish Thickness: 100.0µin (2.54µm)

Original manufacturerCommercial terms confirmed per lot

ManufacturerCW Industries

Mounting typeunknown

PackingBulk

Technical parameters

Technical specifications

14 normalized values · 1 validated source

Report a data issue

C1AXS-1036M technical parameters
Parameter	Value
Cable Termination	IDC [1]
Base Product Number	C1AXS-1 [1]
Color	Multiple, Ribbon [1]
Connector Type	Socket to Cable [1]
Contact Finish	Tin [1]
Contact Finish Thickness	100.0µin (2.54µm) [1]
Length	3.00' (914.40mm) [1]
Mfr	CW Industries [1]
Number of Positions	10 [1]
Number of Rows	2 [1]
Pitch - Cable	0.050" (1.27mm) [1]
Pitch - Connector	0.100" (2.54mm) [1]
Product Status	Active [1]
Shielding	Unshielded [1]

Specification references[1]CW Industries C1AXS-1036M vendor product record ↗
