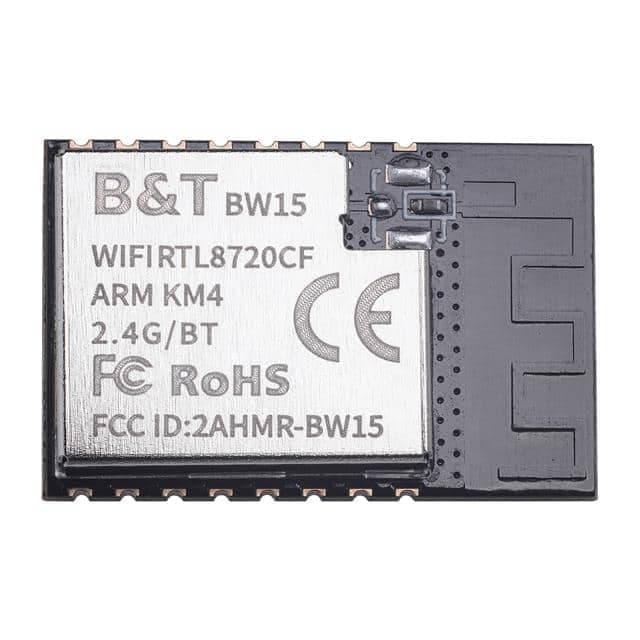

Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image

Exact MPN16 sourced attributes1 source document

Ai-Thinker · exact orderable part

BW15

Name: BW15
Brand: Ai-Thinker

WIFI+BLUETOOTH 4.2 MODULE, REALT

Original manufacturerCommercial terms confirmed per lot

ManufacturerAi-Thinker

Package / case16-SMD Module

Mounting typeunknown

PackingTape & Reel (TR); Cut Tape (CT); Digi-Reel®

Technical parameters

Technical specifications

16 normalized values · 1 validated source

BW15 technical parameters
Parameter	Value
Antenna Type	PCB Trace, Antenna Not Included, I-PEX [1]
Current - Transmitting	600mA [1]
Data Rate	54Mbps [1]
Frequency	2.4GHz [1]
Memory Size	2MB Flash [1]
Mfr	Ai-Thinker [1]
Modulation	64-QAM, BPSK, CCK [1]
Mounting Type	Surface Mount [1]
Operating Temperature	-40°C~85°C [1]
Power - Output	18dBm [1]
Product Status	Active [1]
Protocol	Bluetooth v4.2 [1]
RF Family/Standard	Bluetooth [1]
Sensitivity	-98dBm [1]
Serial Interfaces	ADC, GPIO, I²C, PWM, SPI, UART [1]
Voltage - Supply	3V ~ 3.6V [1]
