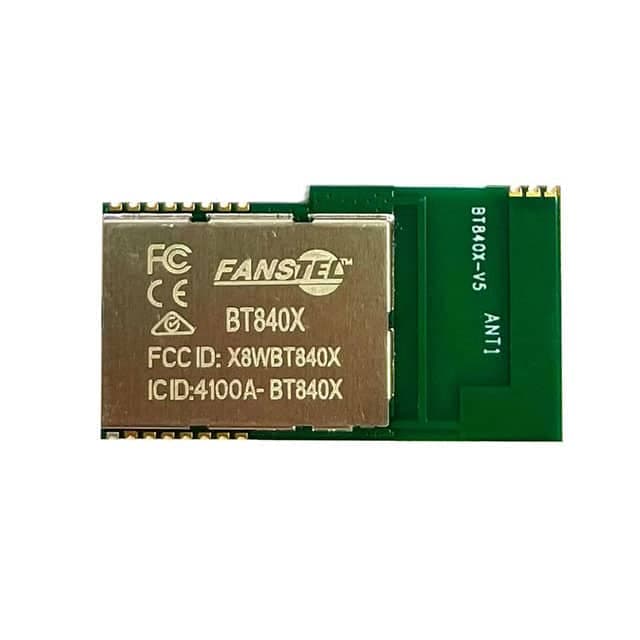

BT840X representative package visual — not an exact-product photograph

Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image

Exact MPN16 sourced attributes1 source document

Fanstel Corp. · exact orderable part

BT840X

RF TXRX MODULE BT PCB TRC SMD

Antenna Type: PCB Trace
Base Product Number: BT840
Data Rate: 2Mbps
Frequency: 2.4GHz
Memory Size: 1MB Flash, 256kB RAM
Mfr: Fanstel Corp.

Original manufacturerCommercial terms confirmed per lot

ManufacturerFanstel Corp.

Package / case16-SMD Module

Mounting typeunknown

PackingTape & Reel (TR); Cut Tape (CT); Digi-Reel®

Technical parameters

Technical specifications

16 normalized values · 1 validated source

Report a data issue

BT840X technical parameters
Parameter	Value
Antenna Type	PCB Trace [1]
Base Product Number	BT840 [1]
Data Rate	2Mbps [1]
Frequency	2.4GHz [1]
Memory Size	1MB Flash, 256kB RAM [1]
Mfr	Fanstel Corp. [1]
Mounting Type	Surface Mount [1]
Operating Temperature	-40°C~85°C [1]
Power - Output	21dBm [1]
Product Status	Active [1]
Protocol	Bluetooth v5.0, Thread, Zigbee® [1]
RF Family/Standard	802.15.4, Bluetooth [1]
Sensitivity	-96dBm [1]
Serial Interfaces	ADC, GPIO, I²C, I²S, PWM, SPI, UART, USB [1]
Voltage - Supply	1.7V ~ 5.5V [1]
Utilized IC / Part	nRF52840-QIAA [1]

Specification references[1]Fanstel Corp. BT840X vendor product record ↗
