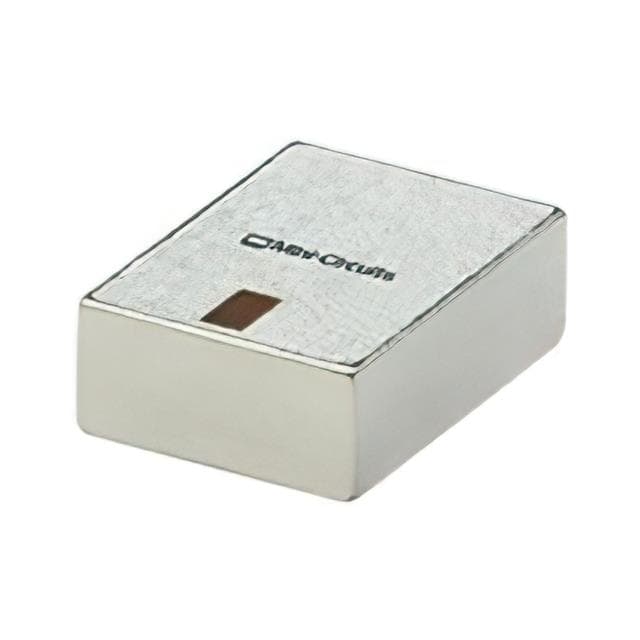

BFHK-9901+ representative package visual — not an exact-product photograph
Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image
Exact MPN12 sourced attributes2 source documents

Mini-Circuits · exact orderable part

BFHK-9901+

RF FILTER BAND PASS 9.7GHZ 3SMD

Bandwidth
2.3GHz
Filter Type
Band Pass
Frequency
9.7GHz Center
Height (Max)
0.064" (1.62mm)
Insertion Loss
4.2dB
Manufacturer
Mini-Circuits
Original manufacturerCommercial terms confirmed per lot
ManufacturerMini-Circuits
Package / case3-SMD, No Lead
Mounting typeSurface Mount
PackingTape & Reel (TR) Cut Tape (CT) Digi-Reel®

Technical parameters

Technical specifications

12 normalized values · 2 validated sources

Report a data issue
ParameterValue
Bandwidth2.3GHz [2]
Filter TypeBand Pass [2]
Frequency9.7GHz Center [2]
Height (Max)0.064" (1.62mm) [2]
Insertion Loss4.2dB [2]
ManufacturerMini-Circuits [2]
Mounting TypeSurface Mount [2]
Part StatusActive [2]
SeriesBFHK [2]
RoHS (DigiKey record)ROHS3 Compliant [2]
Size / Dimension0.177" L x 0.126" W (4.50mm x 3.20mm) [2]
Package / Case3-SMD, No Lead [2]
Specification references[1]Mini-Circuits BFHK-9901+ Ceramic Bandpass Filter datasheet, Rev. OR, 211214 ↗[2]Mini-Circuits BFHK-9901+ vendor product record ↗
