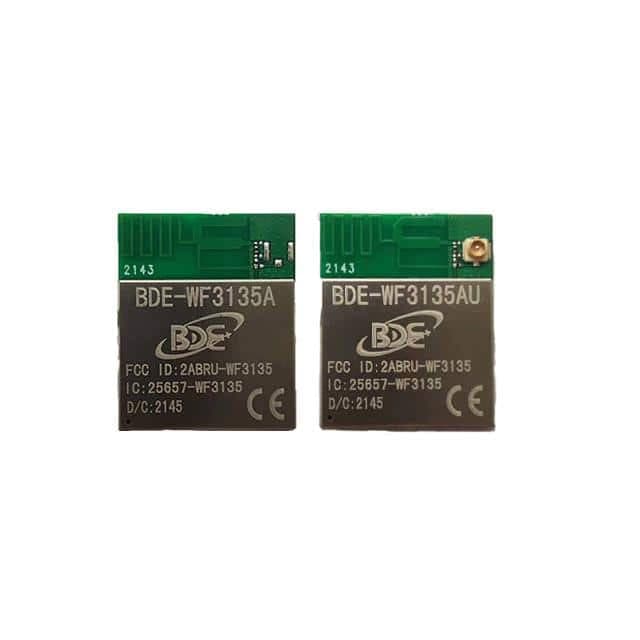

BDE-WF3135AU representative package visual — not an exact-product photograph

Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image

Exact MPN17 sourced attributes1 source document

BDE Technology · exact orderable part

BDE-WF3135AU

CC3135 WiFi Transceiver Module

Antenna Type: Antenna Not Included, U.FL
Current - Receiving: 54mA ~ 65mA
Current - Transmitting: 160mA ~ 325mA
Data Rate: 16Mbps
Frequency: 2.4GHz, 5GHz
Mfr: BDE Technology

Original manufacturerCommercial terms confirmed per lot

ManufacturerBDE Technology

Package / case63-SMD Module

Mounting typeunknown

PackingTape & Reel (TR)

Technical parameters

Technical specifications

17 normalized values · 1 validated source

Report a data issue

BDE-WF3135AU technical parameters
Parameter	Value
Antenna Type	Antenna Not Included, U.FL [1]
Current - Receiving	54mA ~ 65mA [1]
Current - Transmitting	160mA ~ 325mA [1]
Data Rate	16Mbps [1]
Frequency	2.4GHz, 5GHz [1]
Mfr	BDE Technology [1]
Modulation	DSSS, OFDM [1]
Mounting Type	Surface Mount [1]
Operating Temperature	-40°C~85°C [1]
Power - Output	16dBm [1]
Product Status	Active [1]
Protocol	802.11a/b/g/n [1]
RF Family/Standard	WiFi [1]
Sensitivity	-94.5dBm [1]
Serial Interfaces	SPI, UART [1]
Voltage - Supply	2.3V ~ 3.6V [1]
Utilized IC / Part	CC3135 [1]

Specification references[1]BDE Technology BDE-WF3135AU vendor product record ↗
