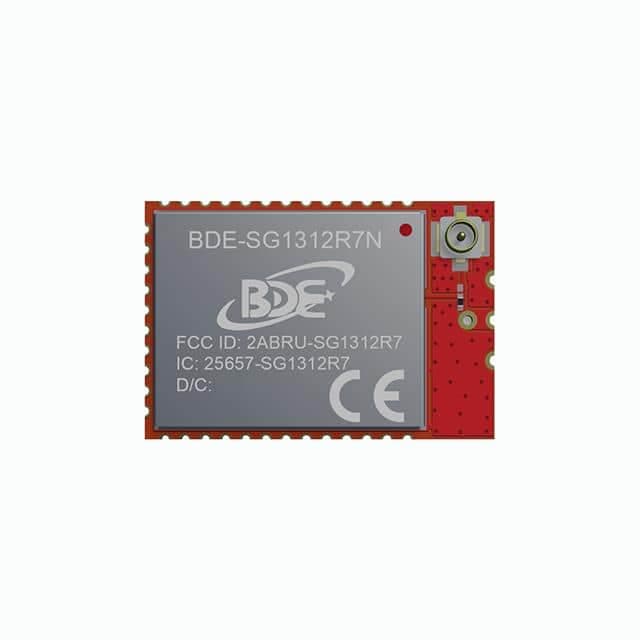

BDE-SG1312R7N representative package visual — not an exact-product photograph

Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image

Exact MPN17 sourced attributes1 source document

BDE Technology · exact orderable part

BDE-SG1312R7N

CC1312R7 Sub-1G MODULE

Antenna Type: RF PAD
Current - Receiving: 5.4mA
Current - Transmitting: 24.9mA
Data Rate: 2Mbps
Frequency: 868MHz, 915MHz
Memory Size: 704kB Flash, 144kB RAM

Original manufacturerCommercial terms confirmed per lot

ManufacturerBDE Technology

Package / case39-SMD Module

Mounting typeunknown

PackingTape & Reel (TR)

Technical parameters

Technical specifications

17 normalized values · 1 validated source

Report a data issue

BDE-SG1312R7N technical parameters
Parameter	Value
Antenna Type	RF PAD [1]
Current - Receiving	5.4mA [1]
Current - Transmitting	24.9mA [1]
Data Rate	2Mbps [1]
Frequency	868MHz, 915MHz [1]
Memory Size	704kB Flash, 144kB RAM [1]
Mfr	BDE Technology [1]
Modulation	2- (G)FSK, 4-(G)FSK, MSKK, OOK [1]
Mounting Type	Surface Mount [1]
Operating Temperature	-40°C~85°C [1]
Power - Output	14dBm [1]
Product Status	Active [1]
Protocol	Bluetooth v5.0, IEEE 802.15.4 PHY and MAC [1]
Sensitivity	-121dBm [1]
Serial Interfaces	Two UART, SSI, I²C, I²S [1]
Voltage - Supply	1.8V ~ 3.8V [1]
Utilized IC / Part	CC1312R7 [1]

Specification references[1]BDE Technology BDE-SG1312R7N vendor product record ↗
