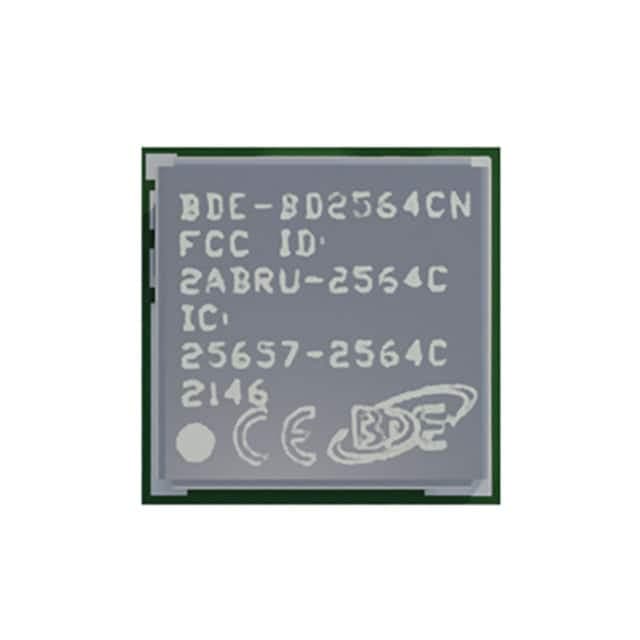

BDE-BD2564CN representative package visual — not an exact-product photograph
Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image
Exact MPN18 sourced attributes1 source document

BDE Technology · exact orderable part

BDE-BD2564CN

CC2564C BLUETOOTH DUAL-MODE MOD

Antenna Type
Antenna Not Included
Current - Receiving
20mA
Current - Transmitting
40mA
Data Rate
4Mbps
Frequency
2.4GHz
Modulation
8DPSK, DQPSK, GFSK
Original manufacturerCommercial terms confirmed per lot
ManufacturerBDE Technology
Package / case33-SMD Module
Mounting typeSurface Mount
PackingTape & Reel (TR)

Technical parameters

Technical specifications

18 normalized values · 1 validated source

Report a data issue
ParameterValue
Antenna TypeAntenna Not Included [1]
Current - Receiving20mA [1]
Current - Transmitting40mA [1]
Data Rate4Mbps [1]
Frequency2.4GHz [1]
MfrBDE Technology [1]
Modulation8DPSK, DQPSK, GFSK [1]
Mounting TypeSurface Mount [1]
Operating Temperature-40°C~85°C [1]
Power - Output10dBm [1]
Product StatusActive [1]
ProtocolBluetooth v5.1, BR / EDR / LE [1]
RF Family/StandardBluetooth [1]
Sensitivity-92dBm [1]
Serial InterfacesI²S, UART [1]
Voltage - Supply2.2V ~ 4.8V [1]
Package / Case33-SMD Module [1]
Utilized IC / PartCC2564C [1]
Specification references[1]BDE Technology BDE-BD2564CN vendor product record ↗
