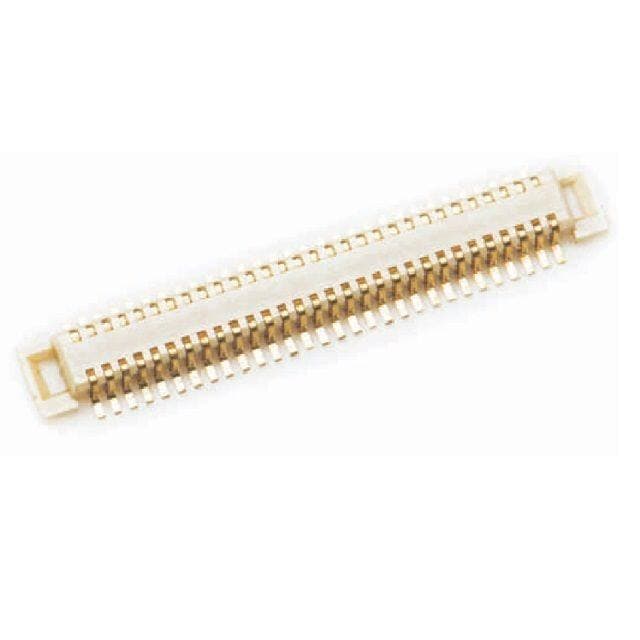

BBAF-060G1125NDLI-B representative package visual — not an exact-product photograph
Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image
Exact MPN13 sourced attributes1 source document

SUPERIOR TECH · exact orderable part

BBAF-060G1125NDLI-B

PLUG BTB 0.5MM PITCH - 60 POS SM

Connector Type
Plug, Outer Shroud Contacts
Number of Positions
60
Pitch
0.020" (0.50mm)
Number of Rows
2
Mated Stacking Heights
1.6mm
Height Above Board
0.049" (1.25mm)
Contact Finish
Gold
Series
BBAF
Product Status
Active
Original manufacturerCommercial terms confirmed per lot
ManufacturerSUPERIOR TECH
Mounting typeSurface Mount
PackingTape & Reel (TR); Cut Tape (CT); Digi-Reel®

Technical parameters

Technical specifications

13 normalized values · 1 validated source

Report a data issue
ParameterValue
MfrSUPERIOR TECH [1]
Product StatusActive [1]
Connector TypePlug, Outer Shroud Contacts [1]
SeriesBBAF [1]
Contact FinishGold [1]
FeaturesBoard Guide [1]
Contact Finish ThicknessFlash [1]
Height Above Board0.049" (1.25mm) [1]
Mated Stacking Heights1.6mm [1]
Mounting TypeSurface Mount [1]
Number of Positions60 [1]
Number of Rows2 [1]
Pitch0.020" (0.50mm) [1]
Specification references[1]SUPERIOR TECH BBAF-060G1125NDLI-B vendor product record ↗

Catalog relationships

Keep family and exact MPN intent separate.

This page describes one orderable part. A family page helps select suffixes but never carries assumed stock or a price.

ManufacturerSUPERIOR TECHView brand page →CategoryArrays, Edge Type, Mezzanine (Board to Board)View category page →
