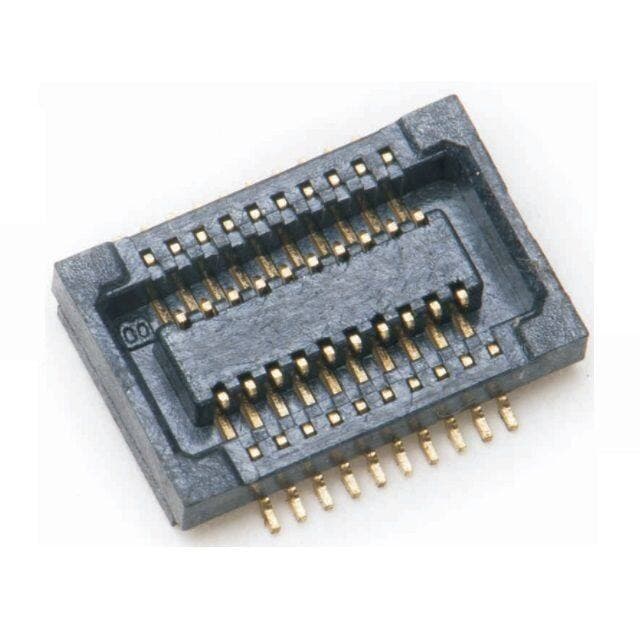

BBAD-020G1145BOLI-B representative package visual — not an exact-product photograph
Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image
Exact MPN12 sourced attributes2 source documents

SUPERIOR TECH · exact orderable part

BBAD-020G1145BOLI-B

PLUG BTB 0.5MM PITCH - 20 POS SM

Connector Type
Plug, Outer Shroud Contacts
Number of Positions
20
Pitch
0.020" (0.50mm)
Number of Rows
2
Mated Stacking Heights
1.5mm
Height Above Board
0.057" (1.45mm)
Contact Finish
Gold
Series
BBAD
Product Status
Active
Original manufacturerCommercial terms confirmed per lot
ManufacturerSUPERIOR TECH
Mounting typeSurface Mount
PackingTape & Reel (TR); Cut Tape (CT); Digi-Reel®

Technical parameters

Technical specifications

12 normalized values · 2 validated sources

Report a data issue
ParameterValue
MfrSUPERIOR TECH [2]
Product StatusActive [2]
Connector TypePlug, Outer Shroud Contacts [2]
SeriesBBAD [2]
Contact FinishGold [2]
Contact Finish ThicknessFlash [2]
Height Above Board0.057" (1.45mm) [2]
Mated Stacking Heights1.5mm [2]
Mounting TypeSurface Mount [2]
Number of Positions20 [2]
Number of Rows2 [2]
Pitch0.020" (0.50mm) [2]
Specification references[1]BBAD-020G1145BOLI-B delivered document ↗[2]SUPERIOR TECH BBAD-020G1145BOLI-B vendor product record ↗
