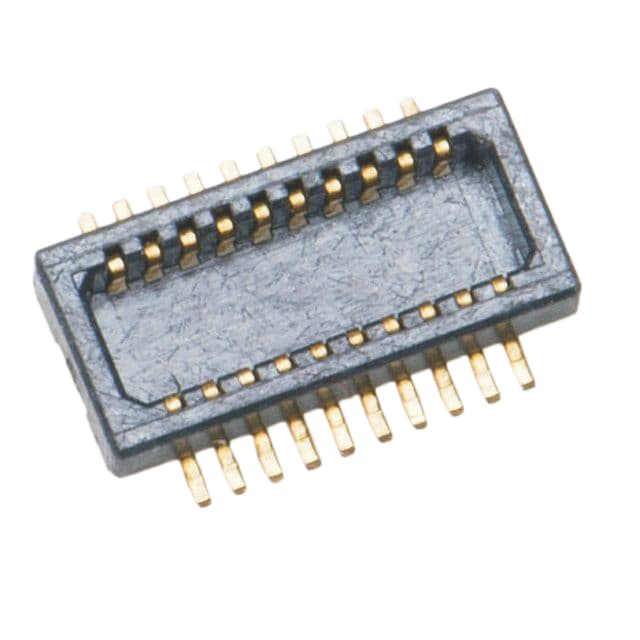

BAAD-030G1120BOLI-B representative package visual — not an exact-product photograph
Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image
Exact MPN12 sourced attributes1 source document

SUPERIOR TECH · exact orderable part

BAAD-030G1120BOLI-B

RECEPTACLE BTB 0.5MM PITCH - 30

Connector Type
Receptacle, Outer Shroud Contacts
Number of Positions
30
Pitch
0.020" (0.50mm)
Number of Rows
2
Mated Stacking Heights
1.5mm
Height Above Board
0.047" (1.20mm)
Contact Finish
Gold
Series
BAAD
Part Status
Active
Original manufacturerCommercial terms confirmed per lot
ManufacturerSUPERIOR TECH
Mounting typeSurface Mount
PackingTape & Reel (TR) Cut Tape (CT) Digi-Reel®

Technical parameters

Technical specifications

12 normalized values · 1 validated source

Report a data issue
ParameterValue
Connector TypeReceptacle, Outer Shroud Contacts [1]
SeriesBAAD [1]
Contact FinishGold [1]
Contact Finish ThicknessFlash [1]
ManufacturerSUPERIOR TECH [1]
Height Above Board0.047" (1.20mm) [1]
Mated Stacking Heights1.5mm [1]
Mounting TypeSurface Mount [1]
Number of Positions30 [1]
Number of Rows2 [1]
Pitch0.020" (0.50mm) [1]
Part StatusActive [1]
Specification references[1]SUPERIOR TECH BAAD-030G1120BOLI-B vendor product record ↗
