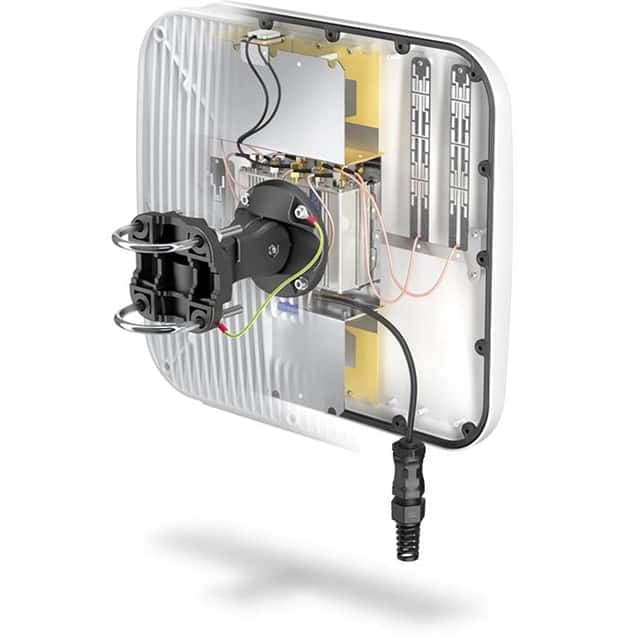

Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image

Exact MPN15 sourced attributes1 source document

QuWireless · exact orderable part

AX12M

2X SECTOR LTE + WI-FI DUAL BAND

Antenna Type: Module
Frequency (Center/Band): 827MHz, 1.95GHz, 2.45GHz, 2.45GHz, 2.45GHz, 5.35GHz
Applications: Bluetooth, GPS, LTE, Wi-Fi
Frequency Group: Wide Band
Frequency Range: 1.7GHz ~ 2.2GHz, 2.2GHz ~ 2.7GHz, 2.3GHz ~ 2.6GHz, 2.4GHz ~ 2.5GHz, 4.7GHz ~ 6GHz
Gain: 4dBi, 5dBi, 6dBi, 3dBi, 6dBi, 7dBi

Original manufacturerCommercial terms confirmed per lot

ManufacturerQuWireless

Mounting typeunknown

PackingBox

Technical parameters

Technical specifications

15 normalized values · 1 validated source

AX12M technical parameters
Parameter	Value
Antenna Type	Module [1]
Frequency (Center/Band)	827MHz, 1.95GHz, 2.45GHz, 2.45GHz, 2.45GHz, 5.35GHz [1]
Applications	Bluetooth, GPS, LTE, Wi-Fi [1]
Frequency Group	Wide Band [1]
Frequency Range	1.7GHz ~ 2.2GHz, 2.2GHz ~ 2.7GHz, 2.3GHz ~ 2.6GHz, 2.4GHz ~ 2.5GHz, 4.7GHz ~ 6GHz [1]
Gain	4dBi, 5dBi, 6dBi, 3dBi, 6dBi, 7dBi [1]
Ingress Protection	IP67 [1]
Height (Max)	3.780" (96.00mm) [1]
Mfr	QuWireless [1]
Number of Bands	6 [1]
Product Status	Active [1]
Mounting Type	Bracket Mount [1]
VSWR	1.8, 2 [1]
RF Family/Standard	Bluetooth, Cellular, Navigation, WiFi [1]
Termination	RJ45 [1]
