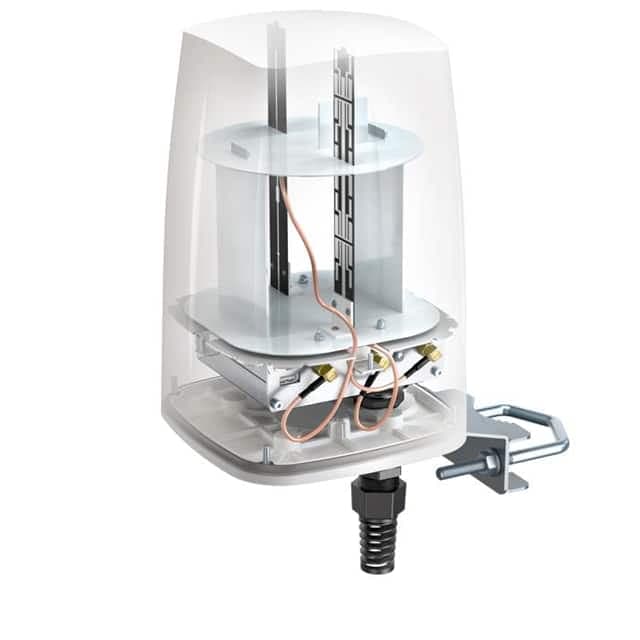

AX10S representative package visual — not an exact-product photograph
Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image
Exact MPN15 sourced attributes1 source document

QuWireless · exact orderable part

AX10S

OMNI WI-FI DUAL BAND + BLUETOOTH

Antenna Type
Module
Frequency (Center/Band)
2.45GHz, 5.35GHz
Applications
Bluetooth, Wi-Fi
Frequency Group
UHF (2GHz ~ 3GHz), SHF (f > 4GHz)
Frequency Range
2.4GHz ~ 2.5GHz, 4.7GHz ~ 6GHz
Gain
6dBi, 7dBi
Original manufacturerCommercial terms confirmed per lot
ManufacturerQuWireless
Mounting typeunknown
PackingBox

Technical parameters

Technical specifications

15 normalized values · 1 validated source

Report a data issue
ParameterValue
Antenna TypeModule [1]
Frequency (Center/Band)2.45GHz, 5.35GHz [1]
ApplicationsBluetooth, Wi-Fi [1]
Frequency GroupUHF (2GHz ~ 3GHz), SHF (f > 4GHz) [1]
Frequency Range2.4GHz ~ 2.5GHz, 4.7GHz ~ 6GHz [1]
Gain6dBi, 7dBi [1]
Ingress ProtectionIP67 [1]
Height (Max)9.449" (240.00mm) [1]
MfrQuWireless [1]
Number of Bands2 [1]
Product StatusActive [1]
Mounting TypeBracket Mount [1]
VSWR2 [1]
RF Family/StandardBluetooth, WiFi [1]
TerminationRJ45 [1]
Specification references[1]QuWireless AX10S vendor product record ↗
