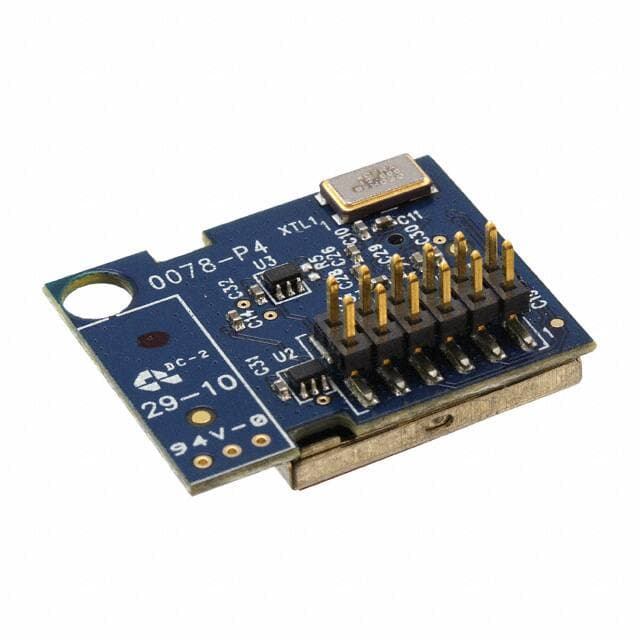

AW24RUH-H2-AA representative package visual — not an exact-product photograph

Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image

Exact MPN16 sourced attributes1 source document

Artaflex Inc. · exact orderable part

AW24RUH-H2-AA

RF TXRX MOD ISM > 1GHZ U.FL TH

Antenna Type: Antenna Not Included, U.FL
Current - Receiving: 20mA ~ 23mA
Current - Transmitting: 195mA
Data Rate: 1Mbps
Frequency: 2.4GHz
Mfr: Artaflex Inc.

Original manufacturerCommercial terms confirmed per lot

ManufacturerArtaflex Inc.

Package / caseModule

Mounting typeunknown

PackingBulk

Technical parameters

Technical specifications

16 normalized values · 1 validated source

Report a data issue

AW24RUH-H2-AA technical parameters
Parameter	Value
Antenna Type	Antenna Not Included, U.FL [1]
Current - Receiving	20mA ~ 23mA [1]
Current - Transmitting	195mA [1]
Data Rate	1Mbps [1]
Frequency	2.4GHz [1]
Mfr	Artaflex Inc. [1]
Modulation	DSSS, GFSK [1]
Mounting Type	Through Hole [1]
Operating Temperature	0°C~70°C [1]
Power - Output	21dBm [1]
Product Status	Obsolete [1]
RF Family/Standard	General ISM > 1GHz [1]
Sensitivity	-93dBm [1]
Serial Interfaces	SPI [1]
Voltage - Supply	2.5V ~ 3.6V [1]
Utilized IC / Part	CYRF7936 [1]

Specification references[1]Artaflex Inc. AW24RUH-H2-AA vendor product record ↗
