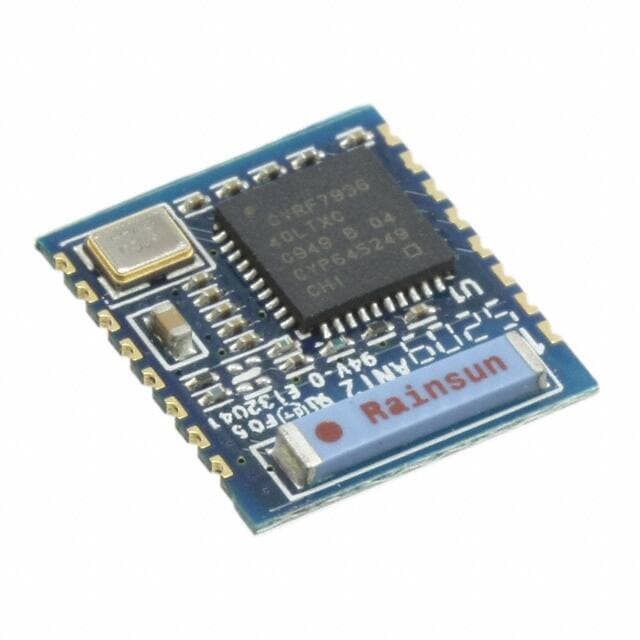

AW24MCHL-SM representative package visual — not an exact-product photograph

Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image

Exact MPN16 sourced attributes1 source document

Artaflex Inc. · exact orderable part

AW24MCHL-SM

RF TXRX MOD ISM > 1GHZ CHIP SMD

Antenna Type: Integrated, Chip
Current - Receiving: 18.4mA ~ 21.2mA
Current - Transmitting: 20.8mA ~ 34.1mA
Data Rate: 1Mbps
Frequency: 2.4GHz
Mfr: Artaflex Inc.

Original manufacturerCommercial terms confirmed per lot

ManufacturerArtaflex Inc.

Package / casePCB Module

Mounting typeunknown

PackingBulk

Technical parameters

Technical specifications

16 normalized values · 1 validated source

Report a data issue

AW24MCHL-SM technical parameters
Parameter	Value
Antenna Type	Integrated, Chip [1]
Current - Receiving	18.4mA ~ 21.2mA [1]
Current - Transmitting	20.8mA ~ 34.1mA [1]
Data Rate	1Mbps [1]
Frequency	2.4GHz [1]
Mfr	Artaflex Inc. [1]
Modulation	DSSS, GFSK [1]
Mounting Type	Surface Mount [1]
Operating Temperature	-20°C~70°C [1]
Power - Output	4dBm [1]
Product Status	Obsolete [1]
RF Family/Standard	General ISM > 1GHz [1]
Sensitivity	-97dBm [1]
Serial Interfaces	SPI [1]
Voltage - Supply	2.4V ~ 3.6V [1]
Utilized IC / Part	CYRF7936 [1]

Specification references[1]Artaflex Inc. AW24MCHL-SM vendor product record ↗
