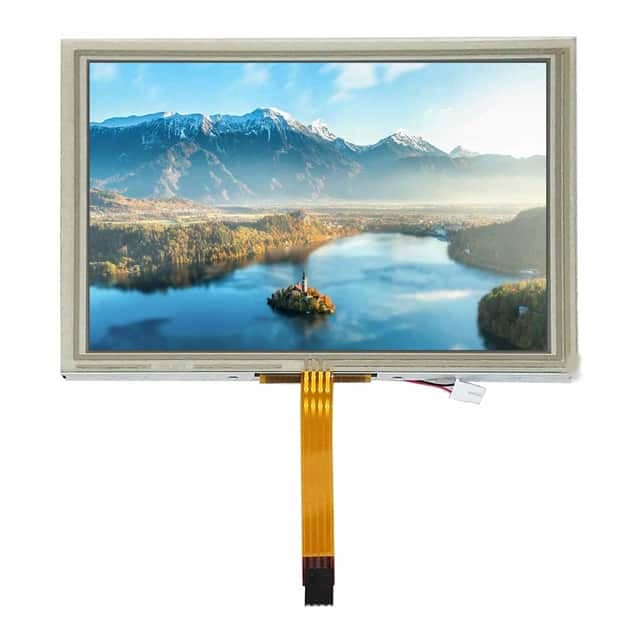

ATM0800D9-T representative package visual — not an exact-product photograph

Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image

Exact MPN14 sourced attributes1 source document

AZ Displays · exact orderable part

ATM0800D9-T

8.0" TFT LCD 800 X 600 W/ RTP

Backlight: LED
Background Color: White
Mfr: AZ Displays
Diagonal Screen Size: 8" (203.20mm)
Product Status: Active
Display Type: TFT - Color

Original manufacturerCommercial terms confirmed per lot

ManufacturerAZ Displays

Mounting typeunknown

PackingBox

Technical parameters

Technical specifications

14 normalized values · 1 validated source

Report a data issue

ATM0800D9-T technical parameters
Parameter	Value
Backlight	LED [1]
Background Color	White [1]
Mfr	AZ Displays [1]
Diagonal Screen Size	8" (203.20mm) [1]
Product Status	Active [1]
Display Type	TFT - Color [1]
Dot Pixels	800 x 600 [1]
Display Mode	Transmissive [1]
Interface	Parallel, 24-Bit (RGB) [1]
Dot Pitch	0.07mm W x 0.20mm H [1]
Touchscreen	Resistive [1]
Dot Size	0.20mm W x 0.20mm H [1]
Graphics Color	Red, Green, Blue (RGB) [1]
Viewing Area	162.00mm W x 121.50mm H [1]

Specification references[1]AZ Displays ATM0800D9-T vendor product record ↗
