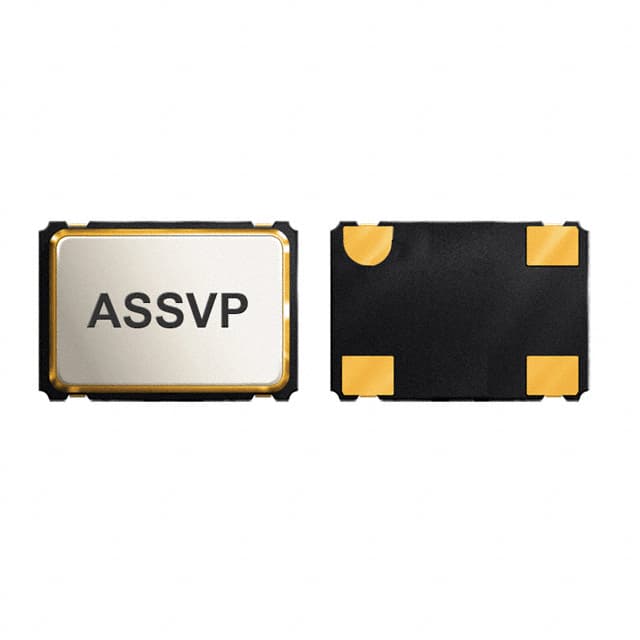

Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image

Exact MPN18 sourced attributes1 source document

Abracon LLC · exact orderable part

ASSVP1-C02

Name: ASSVP1-C02
Brand: Abracon LLC

XTAL OSC PROG XO CMOS CS 2.5V

Original manufacturerCommercial terms confirmed per lot

ManufacturerAbracon LLC

Package / case4-SMD, No Lead

Mounting typeunknown

PackingBulk

Technical parameters

Technical specifications

18 normalized values · 1 validated source

ASSVP1-C02 technical parameters
Parameter	Value
Available Frequency Range	10 MHz ~ 160 MHz [1]
Base Product Number	ASSVP [1]
Base Resonator	Crystal [1]
Current - Supply (Max)	30mA [1]
Frequency Stability (Total)	±50ppm [1]
Function	Standby (Power Down) [1]
Height - Seated (Max)	0.055" (1.40mm) [1]
Mfr	Abracon LLC [1]
Mounting Type	Surface Mount [1]
Operating Temperature	-40°C ~ 85°C [1]
Output	CMOS [1]
Product Status	Active [1]
Programmable Type	Programmed by Digi-Key (Enter your frequency in Web Order Notes) [1]
Series	ASSVP [1]
Size / Dimension	0.276" L x 0.197" W (7.00mm x 5.00mm) [1]
Spread Spectrum Bandwidth	±0.25%, Center Spread [1]
Type	XO (Standard) [1]
Voltage - Supply	2.5V [1]

Catalog relationships

This page describes one orderable part. A family page helps select suffixes but never carries assumed stock or a price.
