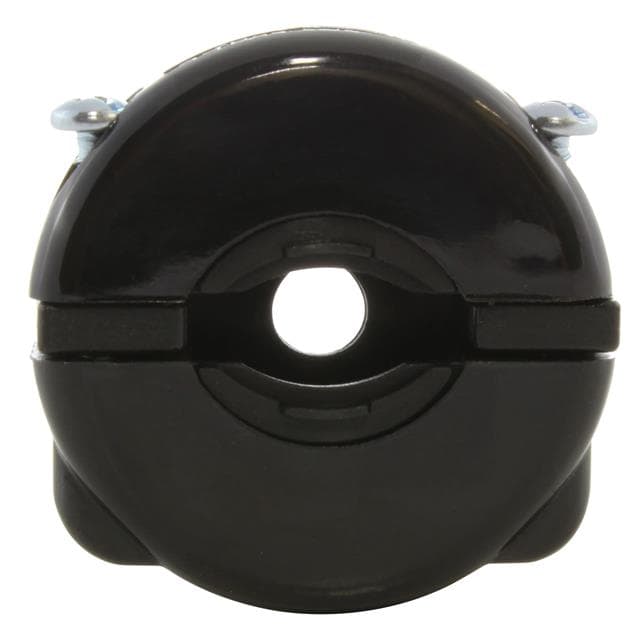

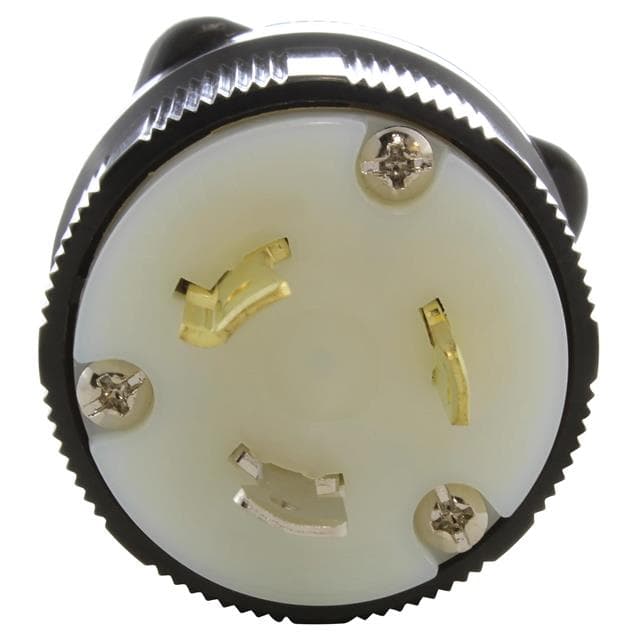

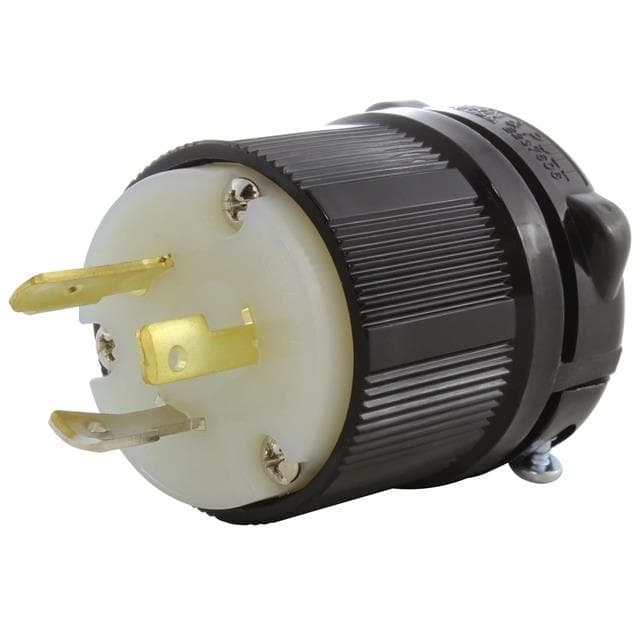

ASL720P-BK representative package visual — not an exact-product photograph
Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image1 of 3
Exact MPN12 sourced attributes1 source document

AC Connectors · exact orderable part

ASL720P-BK

NEMA L7-20 20A 277V PLUG - BLACK

Approval Agency
cULus
Series
AC WORKS®
Connector Style
NEMA L7-20P
Connector Type
Plug, Male Blades
Features
Chemical Resistant, Impact Resistant, Weather Resistant
Current Rating (Amps)
20A
Original manufacturerCommercial terms confirmed per lot
ManufacturerAC Connectors
Mounting typeunknown
PackingTape & Box (TB)

Technical parameters

Technical specifications

12 normalized values · 1 validated source

Report a data issue
ParameterValue
Approval AgencycULus [1]
SeriesAC WORKS® [1]
Connector StyleNEMA L7-20P [1]
Connector TypePlug, Male Blades [1]
FeaturesChemical Resistant, Impact Resistant, Weather Resistant [1]
Current Rating (Amps)20A [1]
Material Flammability RatingUL94 V-0 [1]
ManufacturerAC Connectors [1]
Part StatusActive [1]
Number of Positions3 [1]
TerminationScrew [1]
Voltage Rating277VAC [1]
Specification references[1]AC Connectors ASL720P-BK vendor product record ↗
