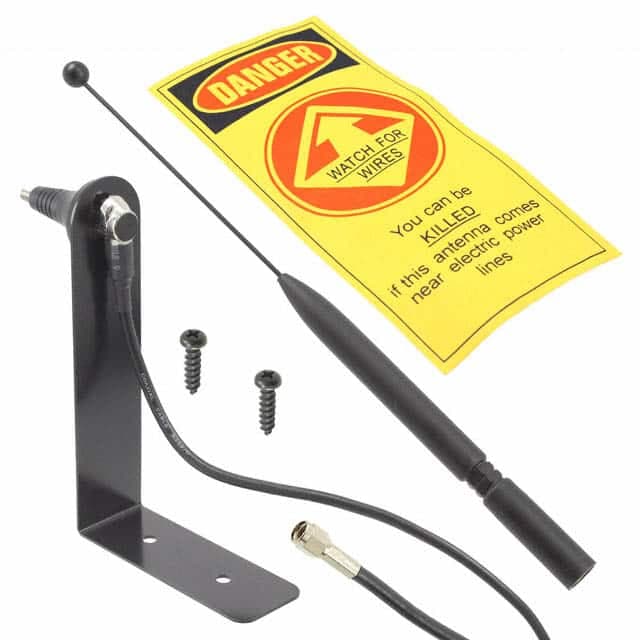

ANT-GSM5WM representative package visual — not an exact-product photograph

Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image

Exact MPN16 sourced attributes1 source document

RF Solutions · exact orderable part

ANT-GSM5WM

RF ANT 892MHZ/1.8GHZ WHIP STR

Antenna Type: Whip, Straight
Frequency (Center/Band): 892MHz, 1.8GHz
Applications: GSM
Frequency Group: UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz)
Base Product Number: ANT-GSM5
Frequency Range: 824MHz ~ 960MHz, 1.8GHz

Original manufacturerCommercial terms confirmed per lot

ManufacturerRF Solutions

Mounting typeunknown

PackingBulk

Technical parameters

Technical specifications

16 normalized values · 1 validated source

Report a data issue

ANT-GSM5WM technical parameters
Parameter	Value
Antenna Type	Whip, Straight [1]
Frequency (Center/Band)	892MHz, 1.8GHz [1]
Applications	GSM [1]
Frequency Group	UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) [1]
Base Product Number	ANT-GSM5 [1]
Frequency Range	824MHz ~ 960MHz, 1.8GHz [1]
Gain	5dB [1]
Height (Max)	9.843" (250.00mm) [1]
Mfr	RF Solutions [1]
Number of Bands	2 [1]
Product Status	Active [1]
Mounting Type	Bracket Mount [1]
VSWR	1.5 [1]
Return Loss	-11dB [1]
RF Family/Standard	Cellular [1]
Termination	SMA Male [1]

Specification references[1]RF Solutions ANT-GSM5WM vendor product record ↗
