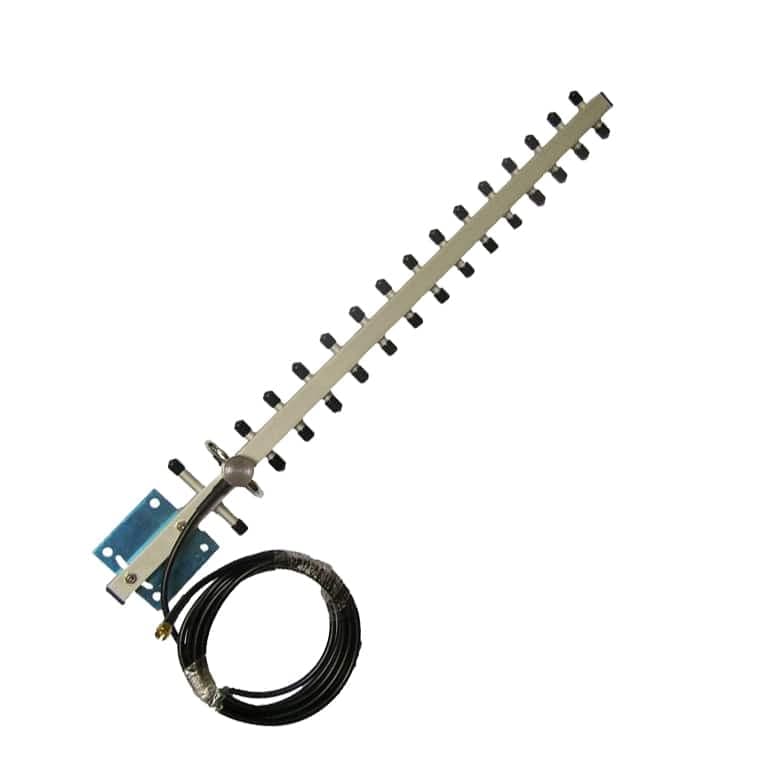

ANT-2YAG16 representative package visual — not an exact-product photograph

Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image

Exact MPN16 sourced attributes1 source document

RF Solutions · exact orderable part

ANT-2YAG16

RF ANT 2.4GHZ YAGI SMA ML BRK MT

Antenna Type: Yagi, 15-Element
Frequency (Center/Band): 2.4GHz
Applications: WLAN
Frequency Group: UHF (2GHz ~ 3GHz)
Features: Cable - 2m
Base Product Number: ANT-2

Original manufacturerCommercial terms confirmed per lot

ManufacturerRF Solutions

Mounting typeunknown

PackingBulk

Technical parameters

Technical specifications

16 normalized values · 1 validated source

Report a data issue

ANT-2YAG16 technical parameters
Parameter	Value
Antenna Type	Yagi, 15-Element [1]
Frequency (Center/Band)	2.4GHz [1]
Applications	WLAN [1]
Frequency Group	UHF (2GHz ~ 3GHz) [1]
Features	Cable - 2m [1]
Base Product Number	ANT-2 [1]
Frequency Range	2.4GHz ~ 2.483GHz [1]
Gain	16dBi [1]
Height (Max)	21.654" (550.00mm) [1]
Mfr	RF Solutions [1]
Number of Bands	1 [1]
Product Status	Active [1]
Mounting Type	Bracket Mount [1]
VSWR	2 [1]
RF Family/Standard	WiFi [1]
Termination	SMA Male [1]

Specification references[1]RF Solutions ANT-2YAG16 vendor product record ↗
