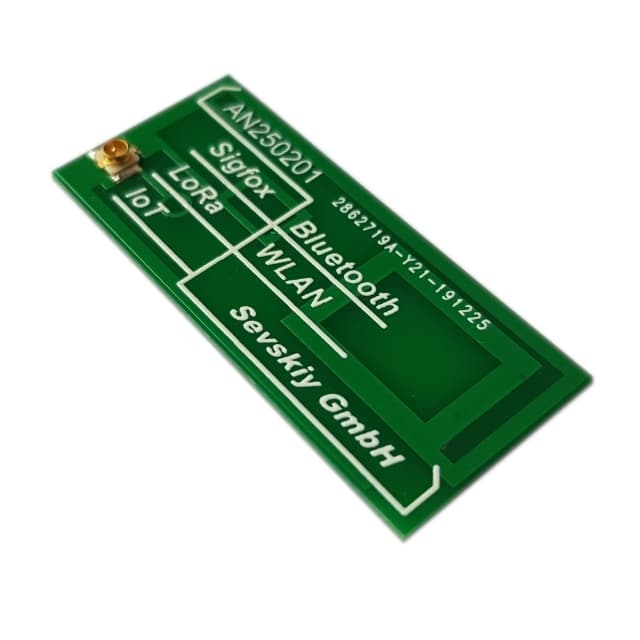

Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image

Exact MPN17 sourced attributes1 source document

Sevskiy GmbH · exact orderable part

AN250201-01H

Name: AN250201-01H
Brand: Sevskiy GmbH

RF ANT 915MHZ/2.45GHZ/5GHz PCB

Original manufacturerCommercial terms confirmed per lot

ManufacturerSevskiy GmbH

Mounting typeunknown

PackingBulk

Technical parameters

Technical specifications

17 normalized values · 1 validated source

AN250201-01H technical parameters
Parameter	Value
Antenna Type	PCB Trace [1]
Frequency (Center/Band)	866MHz, 2.4475GHz, 5.2GHz [1]
Applications	Bluetooth, IoT, ISM, LP-WAN, RFID, WLAN [1]
Frequency Group	UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz), SHF (f > 4GHz) [1]
Frequency Range	807MHz ~ 925MHz, 2.41GHz ~ 2.485GHz, 4.4GHz ~ 6GHz [1]
Gain	0.4dBi, 2.7dBi, 3.9dBi [1]
Height (Max)	0.039" (1.00mm) [1]
Number of Bands	3 [1]
Power - Max	10 W [1]
Manufacturer	Sevskiy GmbH [1]
Mounting Type	Adhesive, Bracket [1]
VSWR	1.93, 1.93, 2.1 [1]
Part Status	Active [1]
Return Loss	-9dB, -10dB, -10dB [1]
RF Family/Standard	802.15.4, Cellular, General ISM, WiFi [1]
Termination	U.FL (UMCC), IPEX MHF1 [1]
Series	AN250201 [1]
