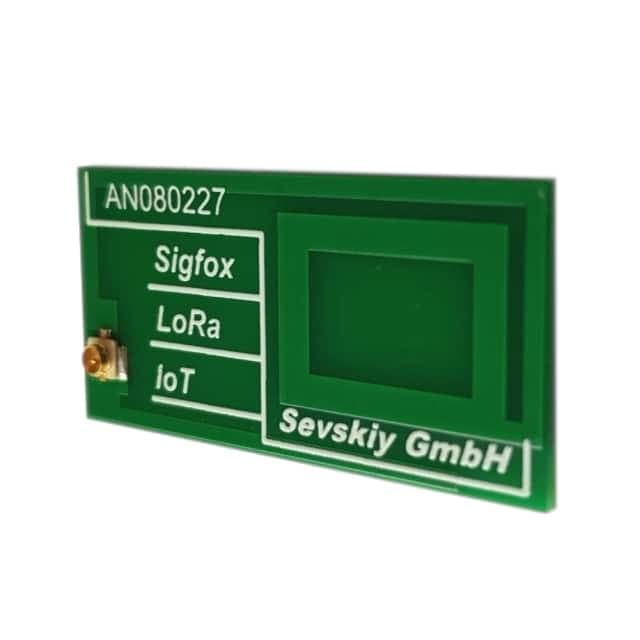

AN080227-01H representative package visual — not an exact-product photograph

Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image

Exact MPN17 sourced attributes1 source document

Sevskiy GmbH · exact orderable part

AN080227-01H

RF ANT 868MHZ/915MHZ PCB TRACE

Antenna Type: PCB Trace
Frequency (Center/Band): 868MHz, 915MHz
Applications: IoT, ISM, Lora, Sigfox
Frequency Group: UHF (300MHz ~ 1GHz)
Frequency Range: 860MHz ~ 925MHz
Gain: 1.2dBi, 1.4dBi

Original manufacturerCommercial terms confirmed per lot

ManufacturerSevskiy GmbH

Mounting typeunknown

PackingBulk

Technical parameters

Technical specifications

17 normalized values · 1 validated source

Report a data issue

AN080227-01H technical parameters
Parameter	Value
Antenna Type	PCB Trace [1]
Frequency (Center/Band)	868MHz, 915MHz [1]
Applications	IoT, ISM, Lora, Sigfox [1]
Frequency Group	UHF (300MHz ~ 1GHz) [1]
Frequency Range	860MHz ~ 925MHz [1]
Gain	1.2dBi, 1.4dBi [1]
Height (Max)	0.039" (1.00mm) [1]
Mfr	Sevskiy GmbH [1]
Number of Bands	2 [1]
Power - Max	10 W [1]
Product Status	Active [1]
Mounting Type	Connector Mount [1]
VSWR	3, 3 [1]
Return Loss	-6dB, -6dB [1]
RF Family/Standard	General ISM [1]
Termination	U.FL (UMCC), IPEX MHF1 [1]
Series	AN080227 [1]

Specification references[1]Sevskiy GmbH AN080227-01H vendor product record ↗
