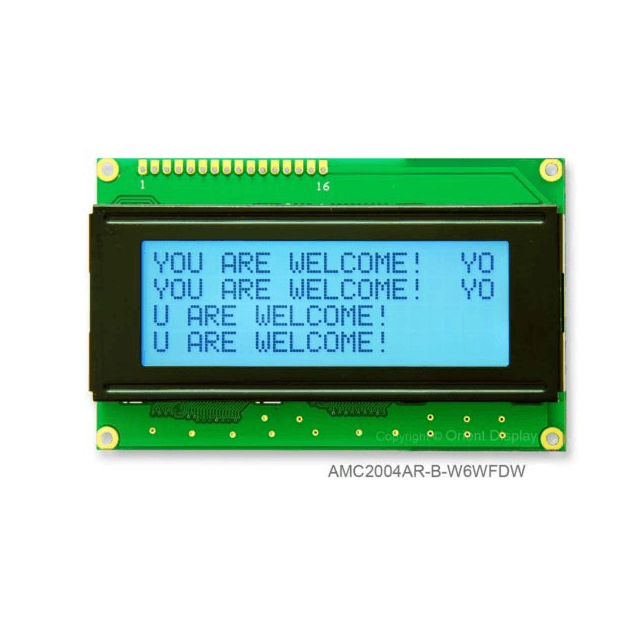

Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image

Exact MPN18 sourced attributes1 source document

Orient Display · exact orderable part

AMC2004AR-B-W6WFDW

Name: AMC2004AR-B-W6WFDW
Brand: Orient Display

LCD COB CHAR 20X4 FSTN+ TRANSF

Original manufacturerCommercial terms confirmed per lot

ManufacturerOrient Display

Mounting typeunknown

PackingBox

Technical parameters

Technical specifications

18 normalized values · 1 validated source

AMC2004AR-B-W6WFDW technical parameters
Parameter	Value
Background Color	Gray [1]
Backlight	LED - White [1]
Character Format	5 x 8 Dots [1]
Character Size	4.75mm H x 2.95mm W [1]
Controller Type	S6A0069 [1]
Display Format	20 x 4 [1]
Display Mode	Transflective [1]
Display Type	FSTN - Film Super-Twisted Nematic [1]
Dot Size	0.55mm W x 0.55mm H [1]
Interface	Parallel, 8-Bit [1]
Mfr	Orient Display [1]
Number of Characters	80 [1]
Operating Temperature	-20°C ~ 70°C [1]
Outline L x W x H	98.00mm x 60.00mm x 15.00mm [1]
Product Status	Active [1]
Text Color	Blue [1]
Viewing Area	76.00mm L x 25.20mm W [1]
Voltage - Supply	4.5V ~ 5.5V [1]
