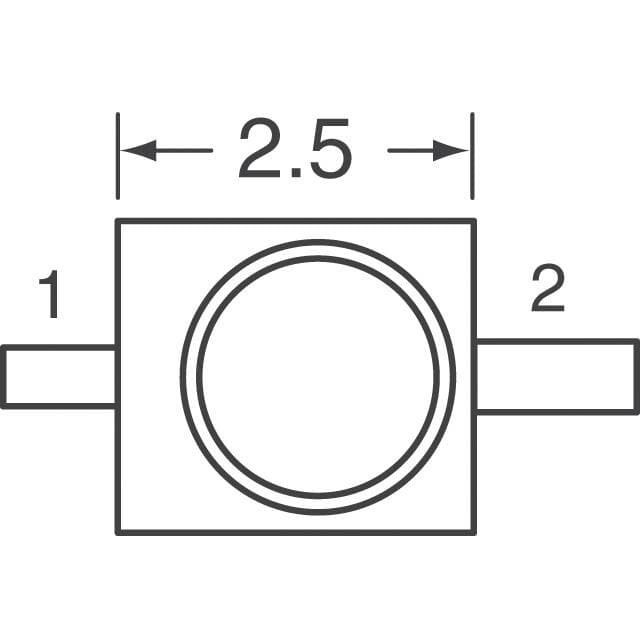

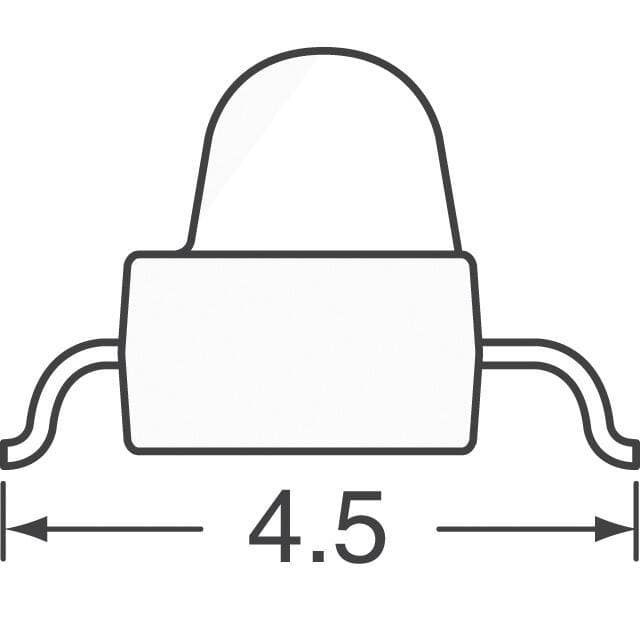

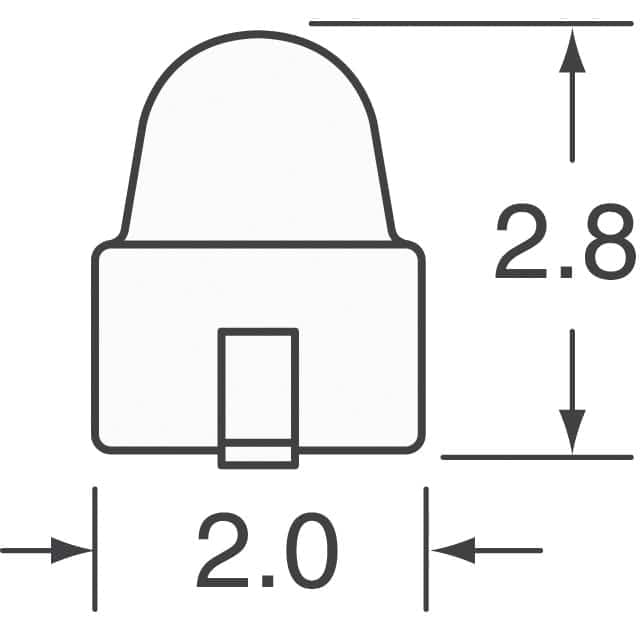

AM2520EC03 representative package visual — not an exact-product photograph
Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image1 of 4
Exact MPN18 sourced attributes1 source document

Kingbright · exact orderable part

AM2520EC03

LED RED CLEAR SMD

Base Product Number
AM2520
Color
Red
Configuration
Standard
Current - Test
20mA
Height (Max)
2.90mm
Lens Color
Colorless
Original manufacturerCommercial terms confirmed per lot
ManufacturerKingbright
Package / case2-SMD, Gull Wing
Mounting typeunknown
PackingTape & Reel (TR); Cut Tape (CT); Digi-Reel®

Technical parameters

Technical specifications

18 normalized values · 1 validated source

Report a data issue
ParameterValue
Base Product NumberAM2520 [1]
ColorRed [1]
ConfigurationStandard [1]
Current - Test20mA [1]
Height (Max)2.90mm [1]
Lens ColorColorless [1]
Lens Size1.90mm Dia [1]
Lens StyleRound with Domed Top [1]
Lens TransparencyClear [1]
MfrKingbright [1]
Millicandela Rating50mcd [1]
Mounting TypeSurface Mount [1]
Product StatusActive [1]
Size / Dimension2.50mm L x 2.00mm W [1]
Viewing Angle20° [1]
Voltage - Forward (Vf) (Typ)2V [1]
Wavelength - Dominant617nm [1]
Wavelength - Peak627nm [1]
Specification references[1]Kingbright AM2520EC03 vendor product record ↗

Catalog relationships

Keep family and exact MPN intent separate.

This page describes one orderable part. A family page helps select suffixes but never carries assumed stock or a price.

ManufacturerKingbrightView brand page →CategoryLED Indication - DiscreteView category page →
