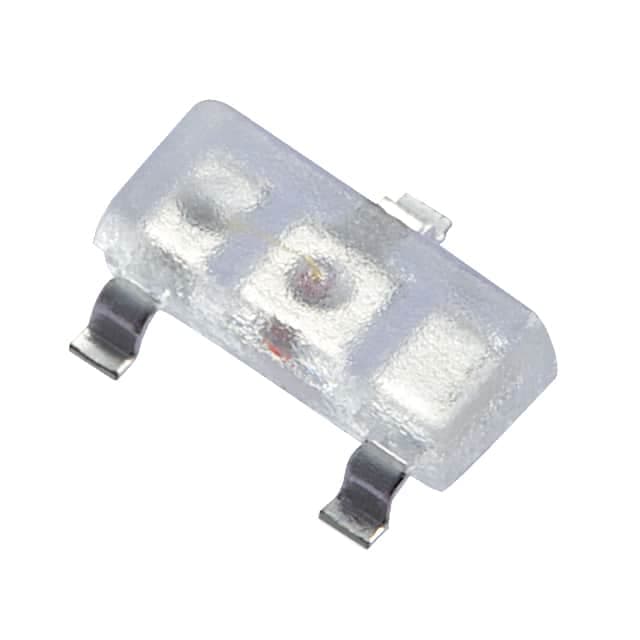

AM23SYCK-F representative package visual — not an exact-product photograph
Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image
Exact MPN18 sourced attributes1 source document

Kingbright · exact orderable part

AM23SYCK-F

LED YELLOW CLEAR SOT23-3 SMD

Base Product Number
AM23
Color
Yellow
Configuration
Independent
Current - Test
20mA
Height (Max)
1.20mm
Lens Color
Colorless
Original manufacturerCommercial terms confirmed per lot
ManufacturerKingbright
Package / caseTO-236-3, SC-59, SOT-23-3
Mounting typeunknown
PackingTape & Reel (TR); Cut Tape (CT); Digi-Reel®

Technical parameters

Technical specifications

18 normalized values · 1 validated source

Report a data issue
ParameterValue
Base Product NumberAM23 [1]
ColorYellow [1]
ConfigurationIndependent [1]
Current - Test20mA [1]
Height (Max)1.20mm [1]
Lens ColorColorless [1]
Lens Size2.10mm x 1.30mm [1]
Lens StyleRectangle with Flat Top [1]
Lens TransparencyClear [1]
MfrKingbright [1]
Millicandela Rating120mcd [1]
Mounting TypeSurface Mount [1]
Product StatusActive [1]
Size / Dimension3.00mm L x 1.40mm W [1]
Viewing Angle170° [1]
Voltage - Forward (Vf) (Typ)2V [1]
Wavelength - Dominant590nm [1]
Wavelength - Peak590nm [1]
Specification references[1]Kingbright AM23SYCK-F vendor product record ↗
