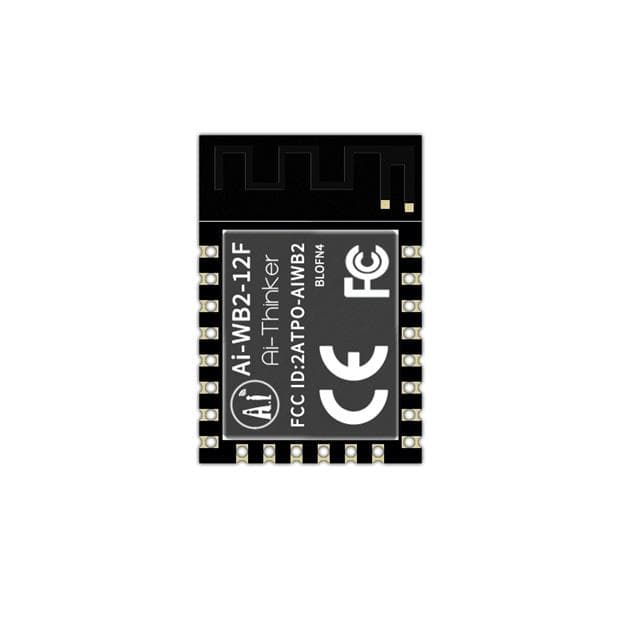

AI-WB2-12F vendor-delivered product or package visual

Representative package visualProduct referenceVendor-delivered DigiKey product/package image

Exact MPN17 sourced attributes1 source document

Ai-Thinker · exact orderable part

AI-WB2-12F

RF TXRX MODULE BT PCB TRACE SMD

Antenna Type: PCB Trace
Current - Receiving: 65mA
Current - Transmitting: 230mA ~ 260mA
DigiKey Programmable: Not Verified
Data Rate: 72.2Mbps
Frequency: 2.4GHz

Original manufacturerCommercial terms confirmed per lot

ManufacturerAi-Thinker

Package / case22-SMD Module

Mounting typeunknown

PackingStrip

Technical parameters

Technical specifications

17 normalized values · 1 validated source

Report a data issue

AI-WB2-12F technical parameters
Parameter	Value
Antenna Type	PCB Trace [1]
Current - Receiving	65mA [1]
Current - Transmitting	230mA ~ 260mA [1]
DigiKey Programmable	Not Verified [1]
Data Rate	72.2Mbps [1]
Frequency	2.4GHz [1]
Memory Size	4MB Flash [1]
Mfr	Ai-Thinker [1]
Mounting Type	Surface Mount [1]
Operating Temperature	-40°C ~ 85°C [1]
Power - Output	19dBm [1]
Product Status	Active [1]
Protocol	802.11b/g/n, Bluetooth v5.0 [1]
RF Family/Standard	Bluetooth, WiFi [1]
Sensitivity	-98dBm [1]
Voltage - Supply	2.7V ~ 3.6V [1]
Utilized IC / Part	BL602 [1]

Specification references[1]Ai-Thinker AI-WB2-12F vendor product record ↗
