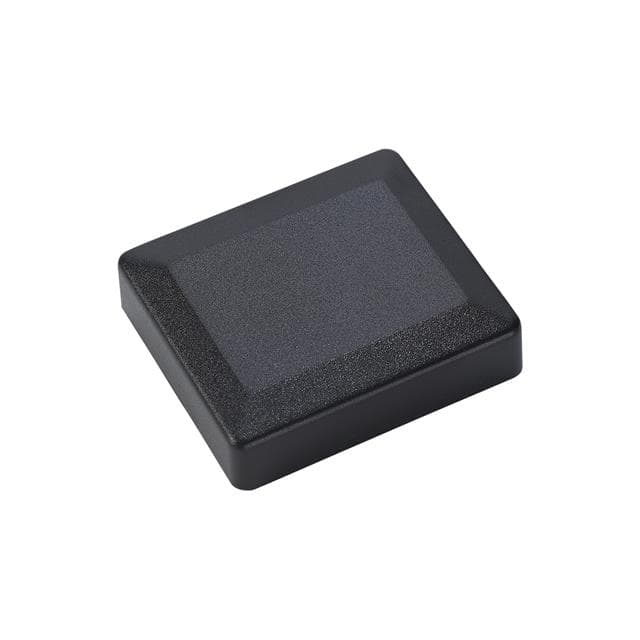

AGPS26MMMC representative package visual — not an exact-product photograph

Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image

Exact MPN16 sourced attributes1 source document

PCTEL, Inc. · exact orderable part

AGPS26MMMC

RF ANT 1.575GHZ MODULE SMA MAGN

Antenna Type: Module
Frequency (Center/Band): 1.575GHz
Applications: GPS
Frequency Group: UHF (1GHz ~ 2GHz)
Features: Cable - 431.8mm, LNA
Frequency Range: 1.574GHz ~ 1.576GHz

Original manufacturerCommercial terms confirmed per lot

ManufacturerPCTEL, Inc.

Mounting typeunknown

PackingBag

Technical parameters

Technical specifications

16 normalized values · 1 validated source

Report a data issue

AGPS26MMMC technical parameters
Parameter	Value
Antenna Type	Module [1]
Frequency (Center/Band)	1.575GHz [1]
Applications	GPS [1]
Frequency Group	UHF (1GHz ~ 2GHz) [1]
Features	Cable - 431.8mm, LNA [1]
Frequency Range	1.574GHz ~ 1.576GHz [1]
Gain	5dBic [1]
Height (Max)	0.547" (13.90mm) [1]
Mfr	PCTEL, Inc. [1]
Number of Bands	1 [1]
Product Status	Active [1]
Mounting Type	Magnetic [1]
VSWR	2 [1]
RF Family/Standard	Navigation [1]
Termination	SMA [1]
Series	AGPS26 [1]

Specification references[1]PCTEL, Inc. AGPS26MMMC vendor product record ↗
