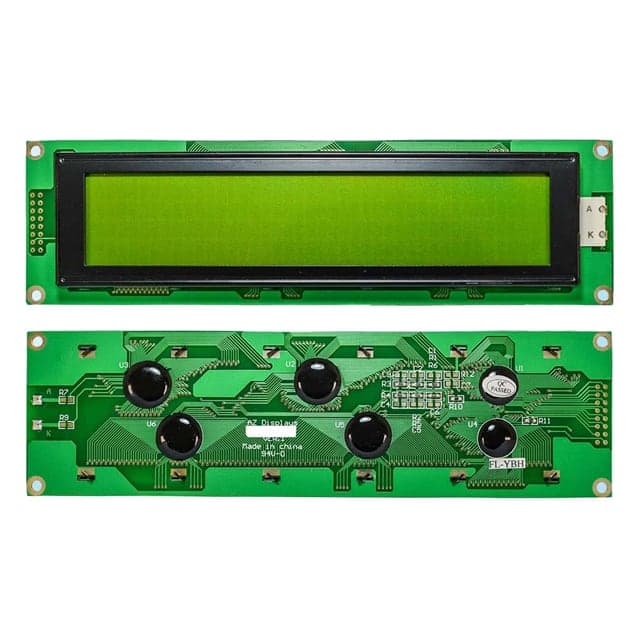

ACM4004H-FL-YBW-R representative package visual — not an exact-product photograph

Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image

Exact MPN15 sourced attributes1 source document

AZ Displays · exact orderable part

ACM4004H-FL-YBW-R

40 X 4 CHARACTER MONOCHROME

Backlight: LED - Yellow/Green
Character Format: 5 x 8 Dots
Controller Type: ST7066U-0A
Character Size: 2.78mm H x 4.89mm W
Display Format: 40 x 4
Dot Size: 0.50mm W x 0.55mm H

Original manufacturerCommercial terms confirmed per lot

ManufacturerAZ Displays

Mounting typeunknown

PackingBox

Technical parameters

Technical specifications

15 normalized values · 1 validated source

Report a data issue

ACM4004H-FL-YBW-R technical parameters
Parameter	Value
Backlight	LED - Yellow/Green [1]
Character Format	5 x 8 Dots [1]
Controller Type	ST7066U-0A [1]
Character Size	2.78mm H x 4.89mm W [1]
Display Format	40 x 4 [1]
Dot Size	0.50mm W x 0.55mm H [1]
Display Mode	Transflective [1]
Display Type	STN - Super-Twisted Nematic [1]
Mfr	AZ Displays [1]
Number of Characters	160 [1]
Operating Temperature	-20°C~70°C [1]
Outline L x W x H	190.00mm x 54.00mm x 13.70mm [1]
Product Status	Active [1]
Viewing Area	147.00mm L x 29.50mm W [1]
Voltage - Supply	4.8V ~ 5.2V [1]

Specification references[1]AZ Displays ACM4004H-FL-YBW-R vendor product record ↗
