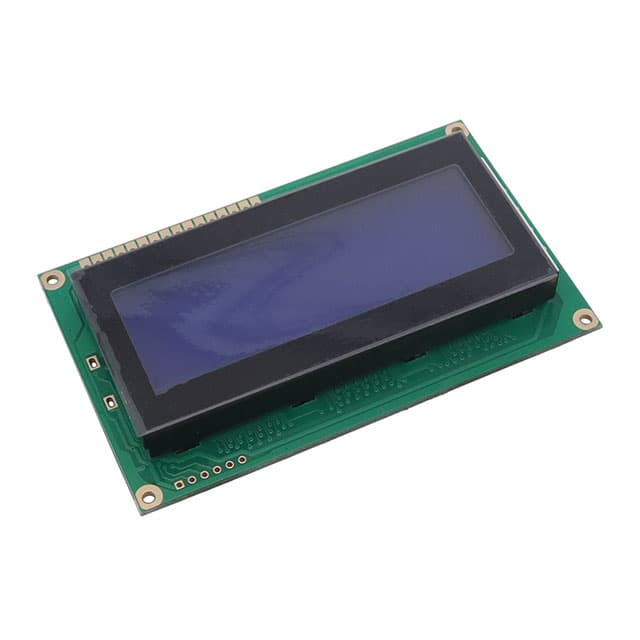

ACM2004D-NLW-BBW-R representative package visual — not an exact-product photograph

Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image

Exact MPN13 sourced attributes1 source document

AZ Displays · exact orderable part

ACM2004D-NLW-BBW-R

DISPLAY LCD CHARACTER 20X4 TRANS

Backlight: LED
Character Format: 5 x 8 Dots
Character Size: 4.75mm H x 2.95mm W
Controller Type: KS0066
Display Format: 20 x 4
Dot Size: 0.55mm W x 0.55mm H

Original manufacturerCommercial terms confirmed per lot

ManufacturerAZ Displays

Mounting typeunknown

PackingBox

Technical parameters

Technical specifications

13 normalized values · 1 validated source

Report a data issue

ACM2004D-NLW-BBW-R technical parameters
Parameter	Value
Backlight	LED [1]
Character Format	5 x 8 Dots [1]
Character Size	4.75mm H x 2.95mm W [1]
Controller Type	KS0066 [1]
Display Format	20 x 4 [1]
Dot Size	0.55mm W x 0.55mm H [1]
Mfr	AZ Displays [1]
Number of Characters	80 [1]
Outline L x W x H	98.00mm x 60.00mm x 13.50mm [1]
Product Status	Not For New Designs [1]
Series	ACM2004D [1]
Viewing Area	76.00mm L x 25.20mm W [1]
Voltage - Supply	2.7V ~ 5.5V [1]

Specification references[1]AZ Displays ACM2004D-NLW-BBW-R vendor product record ↗
