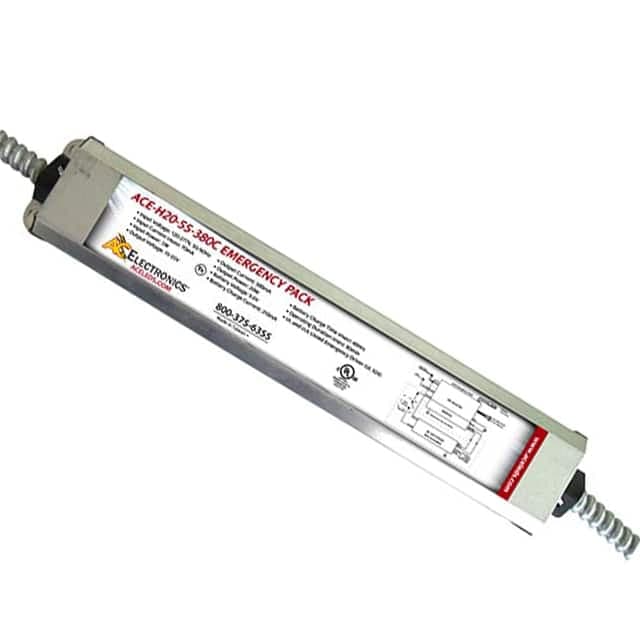

ACE-H20-55-380C representative package visual — not an exact-product photograph

Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image

Exact MPN21 sourced attributes1 source document

AC Electronics · exact orderable part

ACE-H20-55-380C

20W EMERG BACK-UP LED DR W/COND

Type: Constant Current
Topology: AC DC Converter
Number of Outputs: 1
Dimming: Analog
Voltage - Output: 15 ~ 55V
Series: ACE-H20-55-380C (20W)
Product Status: Active
Voltage - Input (Min): 120VAC
Voltage - Input (Max): 277VAC

Original manufacturerCommercial terms confirmed per lot

ManufacturerAC Electronics

Mounting typeChassis Mount

PackingBulk

Technical parameters

Technical specifications

21 normalized values · 1 validated source

Report a data issue

ACE-H20-55-380C technical parameters
Parameter	Value
Approval Agency	cULus, FCC [1]
Current - Output (Max)	380mA [1]
Base Product Number	ACE-H20 [1]
Dimming	Analog [1]
Efficiency	71% [1]
Mfr	AC Electronics [1]
Features	OTP, OVP, SCP [1]
Mounting Type	Chassis Mount [1]
Number of Outputs	1 [1]
Operating Temperature	0°C~55°C [1]
Product Status	Active [1]
Series	ACE-H20-55-380C (20W) [1]
Power (Watts)	20 W [1]
Type	Constant Current [1]
Topology	AC DC Converter [1]
Voltage - Output	15 ~ 55V [1]
Ratings	IP30 [1]
Size / Dimension	13.30" L x 2.44" W x 1.49" H (337.8mm x 62.0mm x 37.8mm) [1]
Termination Style	Wire Leads [1]
Voltage - Input (Max)	277VAC [1]
Voltage - Input (Min)	120VAC [1]

Specification references[1]AC Electronics ACE-H20-55-380C vendor product record ↗
