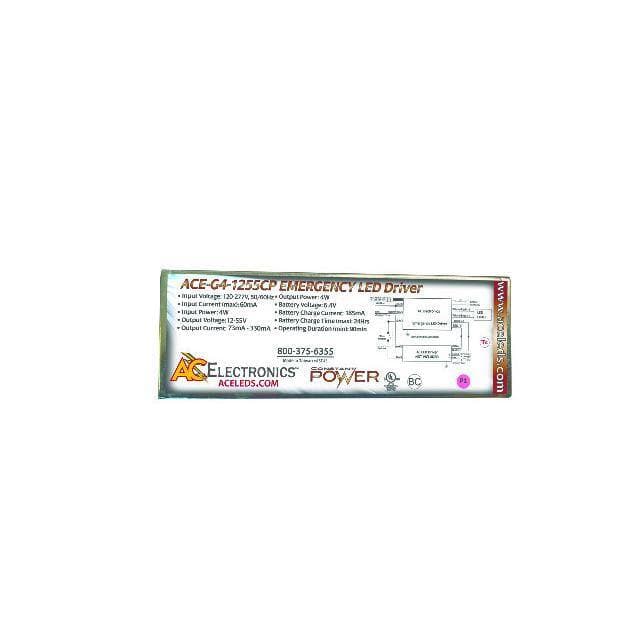

ACE-G4-1255CP representative package visual — not an exact-product photograph
Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image
Exact MPN18 sourced attributes1 source document

AC Electronics · exact orderable part

ACE-G4-1255CP

4W SMALL CASE CONSTANT POWER EME

Approval Agency
cULus, FCC
Current - Output (Max)
330mA
Dimming
Analog
Mfr
AC Electronics
Features
OTP, OVP, SCP
Mounting Type
Chassis Mount
Original manufacturerCommercial terms confirmed per lot
ManufacturerAC Electronics
Mounting typeunknown
PackingBox

Technical parameters

Technical specifications

18 normalized values · 1 validated source

Report a data issue
ParameterValue
Approval AgencycULus, FCC [1]
Current - Output (Max)330mA [1]
DimmingAnalog [1]
MfrAC Electronics [1]
FeaturesOTP, OVP, SCP [1]
Mounting TypeChassis Mount [1]
Number of Outputs1 [1]
Operating Temperature0°C~55°C [1]
Product StatusActive [1]
Power (Watts)18 W [1]
TypeConstant Power [1]
TopologyAC DC Converter [1]
Voltage - Output12 ~ 55V [1]
RatingsIP30 [1]
Size / Dimension5.30" L x 1.70" W x 1.00" H (134.6mm x 43.2mm x 25.4mm) [1]
Termination StyleWire Leads [1]
Voltage - Input (Max)277VAC [1]
Voltage - Input (Min)120VAC [1]
Specification references[1]AC Electronics ACE-G4-1255CP vendor product record ↗
