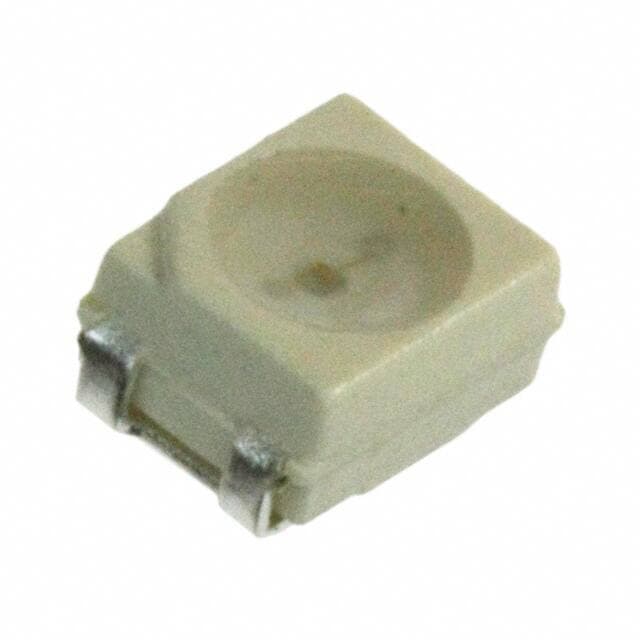

AA3528AZGC representative package visual — not an exact-product photograph
Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image1 of 3
Exact MPN18 sourced attributes1 source document

Kingbright · exact orderable part

AA3528AZGC

LED GREEN CLEAR 2PLCC SMD

Base Product Number
AA3528
Color
Green
Configuration
Standard
Current - Test
20mA
Height (Max)
2.10mm
Lens Color
Colorless
Original manufacturerCommercial terms confirmed per lot
ManufacturerKingbright
Package / case2-PLCC
Mounting typeunknown
PackingTape & Reel (TR)

Technical parameters

Technical specifications

18 normalized values · 1 validated source

Report a data issue
ParameterValue
Base Product NumberAA3528 [1]
ColorGreen [1]
ConfigurationStandard [1]
Current - Test20mA [1]
Height (Max)2.10mm [1]
Lens ColorColorless [1]
Lens Size2.40mm Dia [1]
Lens StyleRound with Flat Top [1]
Lens TransparencyClear [1]
MfrKingbright [1]
Millicandela Rating600mcd [1]
Mounting TypeSurface Mount [1]
Product StatusActive [1]

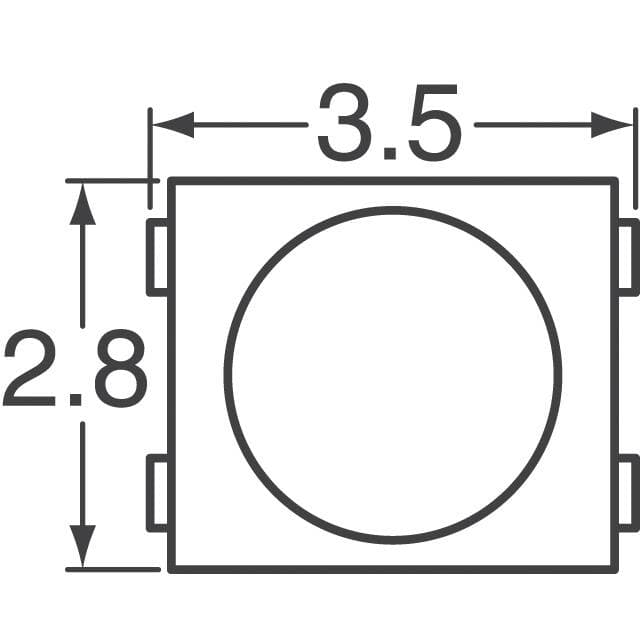

Size / Dimension3.20mm L x 2.80mm W [1]
Viewing Angle120° [1]
Voltage - Forward (Vf) (Typ)3.3V [1]
Wavelength - Dominant525nm [1]
Wavelength - Peak515nm [1]
Specification references[1]Kingbright AA3528AZGC vendor product record ↗
