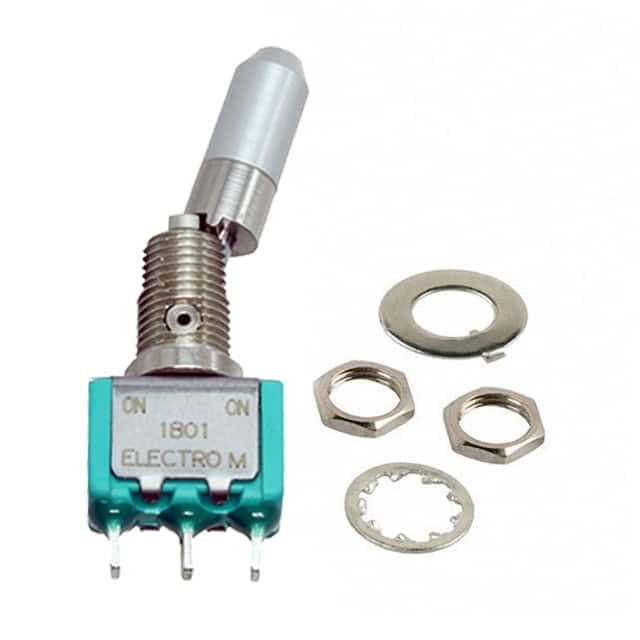

A123K12KZQ representative package visual — not an exact-product photograph

Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image

Exact MPN19 sourced attributes1 source document

Electroswitch · exact orderable part

A123K12KZQ

SWITCH TOGGLE SPDT 6A 125V

Actuator Length: 15.47mm
Actuator Material: Anodized Aluminum
Actuator Type: Locking Lever
Base Product Number: A123K12
Bushing Thread: 1/4-40
Electrical Life: 60,000 Cycles

Original manufacturerCommercial terms confirmed per lot

ManufacturerElectroswitch

Mounting typeunknown

PackingBulk

Technical parameters

Technical specifications

19 normalized values · 1 validated source

Report a data issue

A123K12KZQ technical parameters
Parameter	Value
Actuator Length	15.47mm [1]
Actuator Material	Anodized Aluminum [1]
Actuator Type	Locking Lever [1]
Base Product Number	A123K12 [1]
Bushing Thread	1/4-40 [1]
Electrical Life	60,000 Cycles [1]
Circuit	SPDT [1]
Current Rating (Amps)	6A (AC/DC) [1]
Illumination	Non-Illuminated [1]
Mfr	Electroswitch [1]
Features	Epoxy Sealed Terminals [1]
Mounting Type	Panel Mount [1]
Operating Temperature	-30°C~90°C [1]
Series	A [1]
Product Status	Active [1]
Switch Function	On-On [1]
Termination Style	Solder Lug [1]
Voltage Rating - DC	28 V [1]
Voltage Rating - AC	125 V [1]

Specification references[1]Electroswitch A123K12KZQ vendor product record ↗
