Technical parameters
Technical specifications
| Parameter | Value |
|---|---|
| Base Product Number | 901-96 [1] |
| Body Finish | Gold [1] |
| Body Material | Stainless Steel [1] |
| Cable Group | RG-174, 188, 188A, 316, LMR-100, M17/119-RG174 [1] |
| Center Contact Material | Beryllium Copper [1] |
| Center Contact Plating | Gold [1] |
| Connector Style | SMA [1] |
| Connector Type | Jack, Female Socket [1] |
| Contact Termination | Solder [1] |
| Dielectric Material | Polytetrafluoroethylene (PTFE) [1] |
| Fastening Type | Threaded [1] |
| Frequency - Max | 12.4 GHz [1] |
| Housing Color | Gold [1] |
| Impedance | 50Ohm [1] |

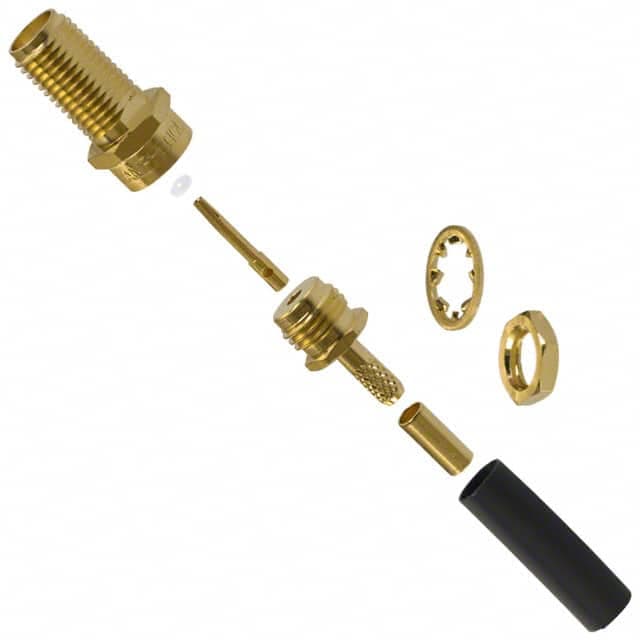

| Includes | 8 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Heat Shrink, 1 Insulator, 1 Lockwasher, 2 Nuts [1] |
| Ingress Protection | Weatherproof [1] |
| Mating Cycles | 500 [1] |
| Mounting Feature | Bulkhead - Front Side Nut [1] |
| Mfr | Amphenol RF [1] |
| Mounting Type | Panel Mount [1] |
| Number of Ports | 1 [1] |
| Operating Temperature | -65°C~165°C [1] |
| Product Status | Active [1] |
| Shield Termination | Crimp [1] |
| Voltage Rating | 375 V [1] |
Specification references[1]Amphenol RF 901-9610-3 vendor product record ↗
