Technical parameters
Technical specifications
| Parameter | Value |
|---|---|
| Base Product Number | 83-8 [1] |
| Body Finish | Nickel [1] |
| Body Material | Zinc Die Cast [1] |
| Center Contact Material | Brass [1] |
| Center Contact Plating | Silver [1] |
| Connector Style | UHF [1] |
| Connector Type | Receptacle, Female Socket [1] |
| Contact Termination | Solder Cup [1] |
| Dielectric Material | Polytetrafluoroethylene (PTFE) [1] |
| Fastening Type | Threaded [1] |
| Frequency - Max | 300 MHz [1] |
| Housing Color | Silver [1] |
| Impedance | Non-Constant [1] |

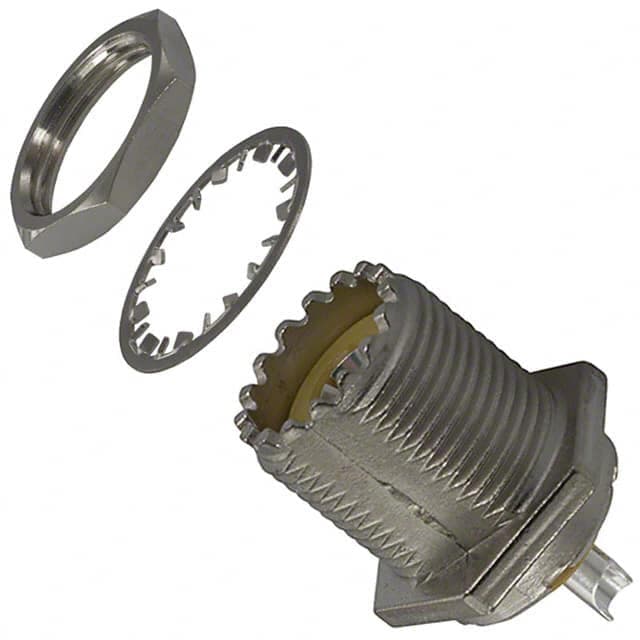

| Includes | 3 pcs - 1 Connector, 1 Lockwasher, 1 Nut [1] |
| Mating Cycles | 500 [1] |
| Mounting Feature | Bulkhead - Front Side Nut [1] |
| Mfr | Amphenol RF [1] |
| Mounting Type | Panel Mount [1] |
| Number of Ports | 1 [1] |
| Operating Temperature | -65°C~165°C [1] |
| Product Status | Active [1] |
| Shield Termination | Solder [1] |
| Voltage Rating | 500 V [1] |
Specification references[1]Amphenol RF 83-878-RFX vendor product record ↗
