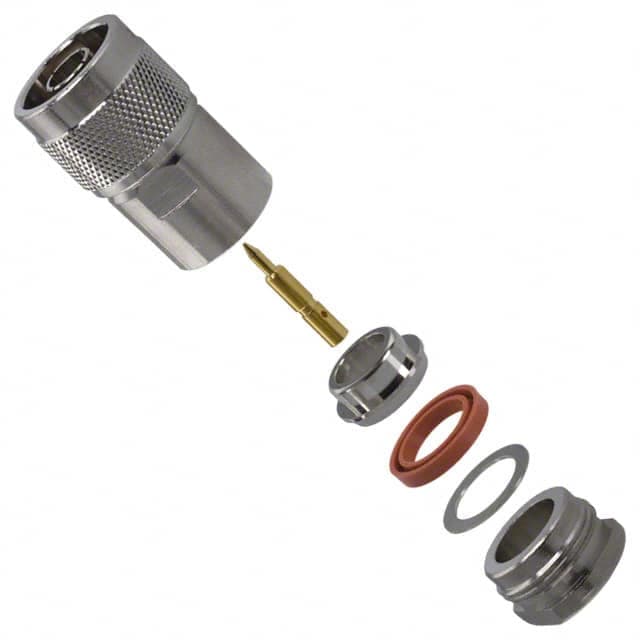

Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image

Exact MPN25 sourced attributes1 source document

Amphenol RF · exact orderable part

82-202-RFX

Name: 82-202-RFX
Brand: Amphenol RF

CONN N PLUG STR 50 OHM SOLDER

Original manufacturerCommercial terms confirmed per lot

ManufacturerAmphenol RF

Mounting typeunknown

PackingBulk

Technical parameters

Technical specifications

25 normalized values · 1 validated source

82-202-RFX technical parameters
Parameter	Value
Base Product Number	82-202 [1]
Body Finish	Nickel [1]
Body Material	Brass [1]
Cable Group	RG-8, 8A, 9, 9A, 9B, 87, 213, 214, 225, 302, 393 [1]
Center Contact Material	Brass [1]
Center Contact Plating	Gold [1]
Connector Style	N Type [1]
Connector Type	Plug, Male Pin [1]
Contact Termination	Solder [1]
Dielectric Material	Polytetrafluoroethylene (PTFE) [1]
Fastening Type	Threaded [1]
Frequency - Max	11 GHz [1]
Housing Color	Silver [1]
Impedance	50Ohm [1]
Includes	6 pcs - 1 Connector, 1 Braid, Clamp, 1 Clamp, 1 Contact, 1 Gasket, 1 Washer [1]
Insertion Loss	0.15dB [1]
Ingress Protection	Weatherproof [1]
Mating Cycles	500 [1]
Mfr	Amphenol RF [1]
Mounting Type	Free Hanging (In-Line) [1]
Number of Ports	1 [1]
Operating Temperature	-65°C~165°C [1]
Product Status	Active [1]
Shield Termination	Clamp [1]
Voltage Rating	1500 V [1]
