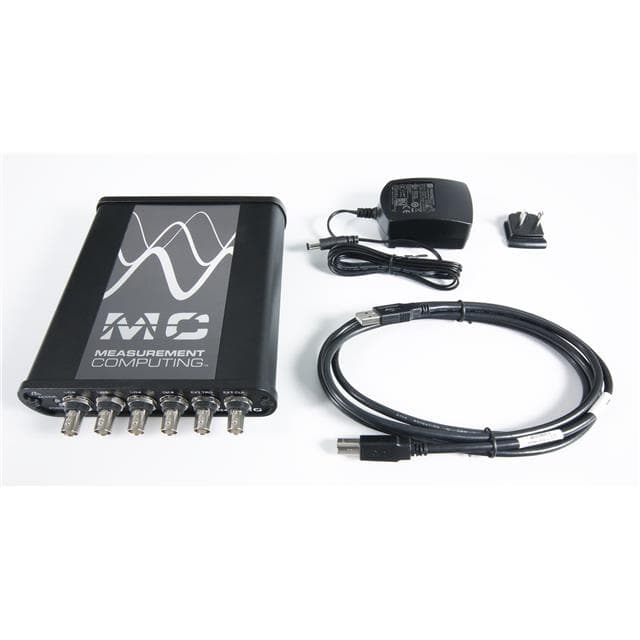

6069-410-036 representative package visual — not an exact-product photograph

Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image

Exact MPN16 sourced attributes1 source document

Digilent, Inc. · exact orderable part

6069-410-036

DAQ DEVICE MULTIFUNC I/O USB 2.0

Bus Connection: USB 2.0
Bidirectional Channels: 16
Function: Multifunction I/O
Front Connection: BNC
Input Range: ±500mV, ±2.5V, ±10V
Counter/Timers: 6

Original manufacturerCommercial terms confirmed per lot

ManufacturerDigilent, Inc.

Mounting typeunknown

PackingBox

Technical parameters

Technical specifications

16 normalized values · 1 validated source

Report a data issue

6069-410-036 technical parameters
Parameter	Value
Bus Connection	USB 2.0 [1]
Bidirectional Channels	16 [1]
Function	Multifunction I/O [1]
Front Connection	BNC [1]
Input Range	±500mV, ±2.5V, ±10V [1]
Counter/Timers	6 [1]
Input Resolution	16 Bits [1]
Mfr	Digilent, Inc. [1]
Number of Inputs and Type	4 - Analog, 16 - Digital [1]
Series	USB-1604HS [1]
Number of Outputs and Type	2 - Analog, 16 - Digital [1]
Product Status	Active [1]
Type	DAQ Device [1]
Output Range	±10V [1]
Output Resolution	16 Bits [1]
Sampling Rate (Per Second)	2M - Simultaneous [1]

Specification references[1]Digilent, Inc. 6069-410-036 vendor product record ↗
