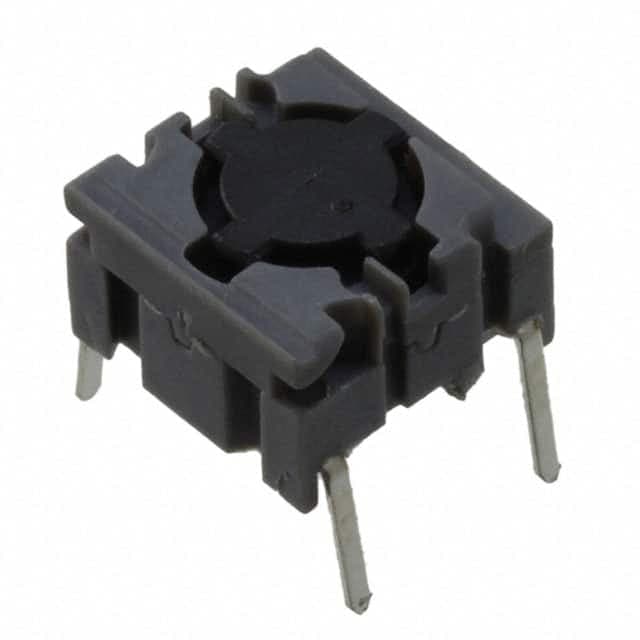

Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image

Exact MPN21 sourced attributes1 source document

MEC Switches · exact orderable part

5GTH935NCNO

Name: 5GTH935NCNO
Brand: MEC Switches

SWITCH TACTILE SPDT 0.05A 24V

Original manufacturerCommercial terms confirmed per lot

ManufacturerMEC Switches

Mounting typeunknown

PackingTube

Technical parameters

Technical specifications

21 normalized values · 1 validated source

5GTH935NCNO technical parameters
Parameter	Value
Actuator Height off PCB, Vertical	6.40mm [1]
Actuator Orientation	Top Actuated [1]
Actuator Material	Polyphenylene Sulfide (PPS) [1]
Actuator Type	Plunger for Cap [1]
Base Product Number	5GTH [1]
Circuit	SPDT [1]
Contact Rating @ Voltage	0.05A @ 24VDC [1]
Illumination	Non-Illuminated [1]
Mechanical Life	1,000,000 Cycles [1]
Features	Sealed - Flux Protection [1]
Mfr	MEC Switches [1]
Mounting Type	Through Hole [1]
Ingress Protection	IP67 - Dust Tight, Waterproof [1]
Operating Force	350gf [1]
Operating Temperature	-40°C~160°C [1]
Outline	10.10mm x 10.10mm [1]
Product Status	Active [1]
Series	Multimec® 5 [1]
Switch Function	On-Mom [1]
Switch Travel	1.00mm [1]
Termination Style	PC Pin [1]
