Technical parameters
Technical specifications
| Parameter | Value |
|---|---|

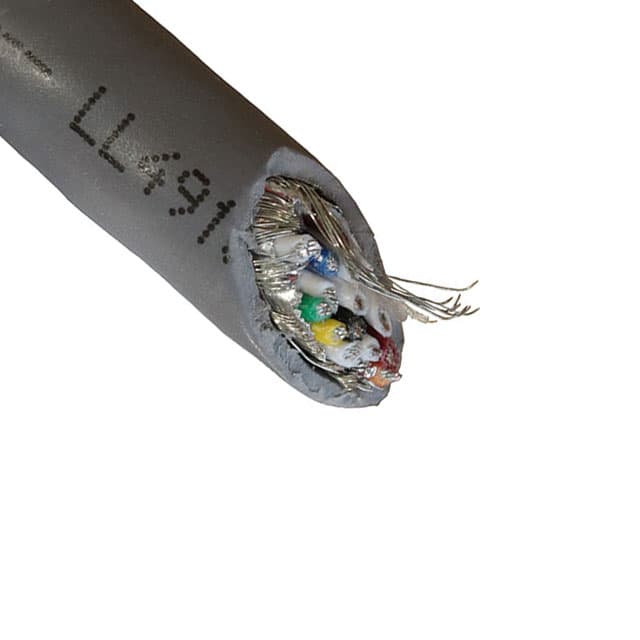

| Base Product Number | 5341C [1] |
| Cable Type | Multi-Pair [1] |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) [1] |
| Conductor Material | Copper, Tinned [1] |
| Conductor Strand | 7/30 [1] |
| Features | Biological Compatibility, Drain Wire, Rip Cord [1] |
| Jacket (Insulation) Diameter | 0.406" (10.31mm) [1] |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) [1] |
| Jacket (Insulation) Thickness | 0.0630" (1.600mm) [1] |
| Jacket Color | Slate [1] |
| Mfr | Alpha Wire [1] |
| Length | 100.0' (30.5m) [1] |
| Number of Conductors | 14 (7 Pair Twisted) [1] |
| Operating Temperature | -35°C ~ 105°C [1] |
| Product Status | Active [1] |
| Ratings | ISO 10993 [1] |
| Series | Xtra-Guard® 1 [1] |
| Shield Coverage | 100%, 70% [1] |
| Shield Material | Suprashield®; Copper, Tinned [1] |
| Shield Type | Foil, Braid [1] |
| Usage | Communication, Control [1] |
| Voltage | 300 V [1] |
| Wire Gauge | 22 AWG [1] |
Specification references[1]Alpha Wire 5341C SL005 vendor product record ↗
