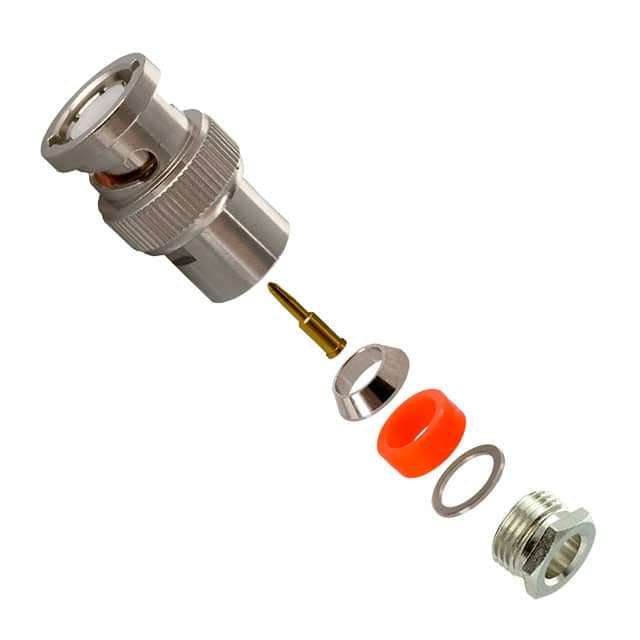

Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image

Exact MPN24 sourced attributes1 source document

Amphenol RF · exact orderable part

31-212-RFX

CONN BNC PLUG STR 50 OHM SOLDER

Connector Style: BNC
Connector Type: Plug, Male Pin
Impedance: 50Ohm
Frequency - Max: 4 GHz
Cable Group: RG-59, 59B, 62, 140, 210, Belden 8241, 8263, 8279, 9209
Contact Termination: Solder
Shield Termination: Clamp
Mounting Type: Free Hanging (In-Line)
Includes: 6 pcs - 1 Connector, 1 Braid Clamp, 1 Clamp, 1 Contact, 1 Gasket, 1 Washer

Original manufacturerCommercial terms confirmed per lot

ManufacturerAmphenol RF

Mounting typeFree Hanging (In-Line)

PackingBulk

Technical parameters

Technical specifications

24 normalized values · 1 validated source

31-212-RFX technical parameters
Parameter	Value
Base Product Number	31-212 [1]
Body Finish	Nickel [1]
Body Material	Brass [1]
Cable Group	RG-59, 59B, 62, 140, 210, Belden 8241, 8263, 8279, 9209 [1]
Center Contact Material	Brass [1]
Center Contact Plating	Gold [1]
Connector Style	BNC [1]
Connector Type	Plug, Male Pin [1]
Contact Termination	Solder [1]
Dielectric Material	Polytetrafluoroethylene (PTFE) [1]
Fastening Type	Bayonet Lock [1]
Frequency - Max	4 GHz [1]
Housing Color	Silver [1]
Impedance	50Ohm [1]
Includes	6 pcs - 1 Connector, 1 Braid Clamp, 1 Clamp, 1 Contact, 1 Gasket, 1 Washer [1]
Insertion Loss	0.2dB [1]
Mating Cycles	500 [1]
Mfr	Amphenol RF [1]
Mounting Type	Free Hanging (In-Line) [1]
Number of Ports	1 [1]
Operating Temperature	-65°C~165°C [1]
Product Status	Active [1]
Shield Termination	Clamp [1]
Voltage Rating	500 V [1]
