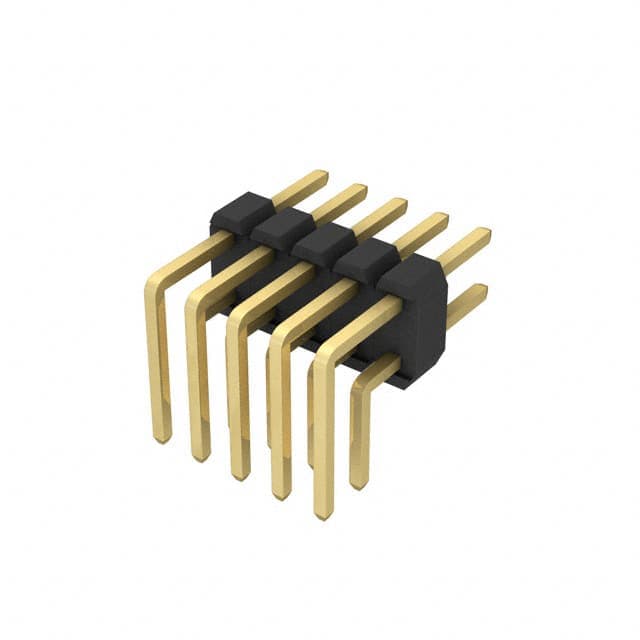

Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image1 of 4

Exact MPN29 sourced attributes1 source document

NorComp Inc. · exact orderable part

27641002RP2

Name: 27641002RP2
Brand: NorComp Inc.

CONN HEADER R/A 10POS 2MM

Original manufacturerCommercial terms confirmed per lot

ManufacturerNorComp Inc.

Mounting typeunknown

PackingBulk

Technical parameters

Technical specifications

29 normalized values · 1 validated source

27641002RP2 technical parameters
Parameter	Value
Connector Type	Header [1]
Mfr	NorComp Inc. [1]
Contact Finish - Mating	Gold [1]
Product Status	Active [1]
Contact Finish - Post	Gold [1]
Series	2764 [1]
Contact Finish Thickness - Mating	Flash [1]
Contact Finish Thickness - Post	Flash [1]
Contact Length - Post	0.118" (3.00mm) [1]
Contact Material	Copper Alloy [1]
Contact Length - Mating	0.150" (3.81mm) [1]
Contact Shape	Square [1]
Contact Type	Male Pin [1]
Current Rating (Amps)	1A [1]
Fastening Type	Push-Pull [1]
Insulation Color	Black [1]
Insulation Height	0.158" (4.01mm) [1]
Insulation Material	Polyamide (PA6T), Nylon 6T [1]
Material Flammability Rating	UL94 V-0 [1]
Mounting Type	Through Hole, Right Angle [1]
Number of Positions	10 [1]
Number of Positions Loaded	All [1]
Number of Rows	2 [1]
Operating Temperature	-40°C~105°C [1]
Pitch - Mating	0.079" (2.00mm) [1]
Row Spacing - Mating	0.079" (2.00mm) [1]
Shrouding	Unshrouded [1]
Style	Board to Board or Cable [1]
Termination	Solder [1]
