Technical parameters
Technical specifications
| Parameter | Value |
|---|---|

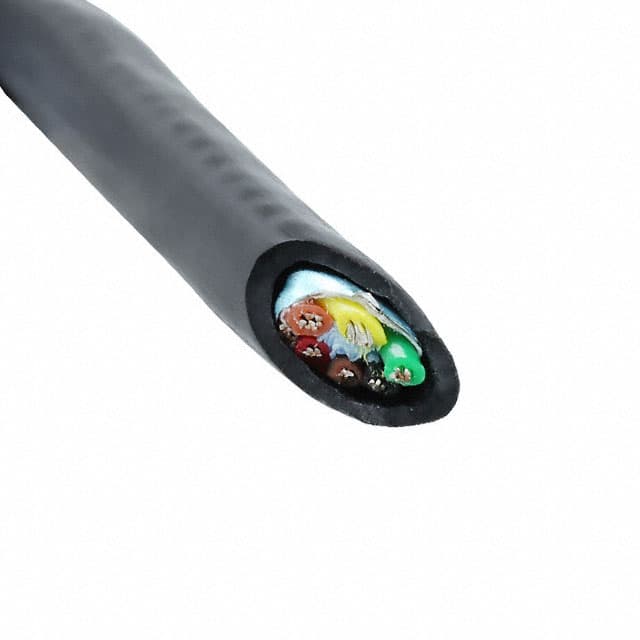

| Base Product Number | 25096 [1] |
| Cable Type | Multi-Conductor [1] |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) [1] |
| Conductor Material | Copper, Tinned [1] |
| Conductor Strand | 7/32 [1] |
| Features | Biological Compatibility, Drain Wire, Rip Cord [1] |
| Jacket (Insulation) Diameter | 0.205" (5.21mm) [1] |
| Jacket (Insulation) Material | Polyurethane (PU) [1] |
| Jacket (Insulation) Thickness | 0.0320" (0.813mm) [1] |
| Jacket Color | Black [1] |
| Mfr | Alpha Wire [1] |
| Length | Enter Number of Feet in Order Quantity [1] |
| Number of Conductors | 6 [1] |
| Operating Temperature | -30°C ~ 90°C [1] |
| Product Status | Active [1] |
| Ratings | ISO 10993, UL Style 20668 [1] |
| Series | Xtra-Guard® 2 [1] |
| Spool Size | 1000.0' (304.8m) [1] |
| Shield Material | Aluminum [1] |
| Shield Type | Foil [1] |
| Usage | Communication, Control [1] |
| Wire Gauge | 24 AWG [1] |
Specification references[1]Alpha Wire 25096 BK199 vendor product record ↗
