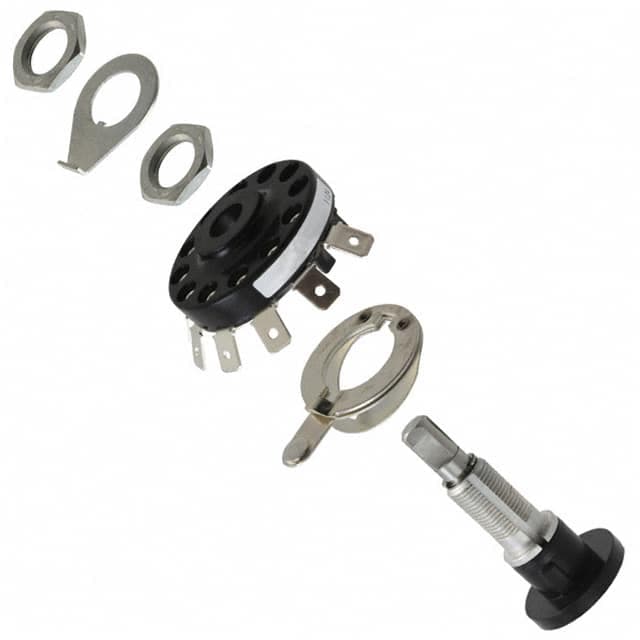

19101-06UL representative package visual — not an exact-product photograph
Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image
Exact MPN20 sourced attributes1 source document

Grayhill Inc. · exact orderable part

19101-06UL

SWITCH ROTARY 6POS 15A 120V

Actuator Type
Flatted (6.35mm Dia)
Actuator Length
12.70mm
Angle of Throw
30°
Circuit per Deck
SP6T
Base Product Number
19101
Contact Material
Silver Alloy
Original manufacturerCommercial terms confirmed per lot
ManufacturerGrayhill Inc.
Mounting typeunknown
PackingBulk

Technical parameters

Technical specifications

20 normalized values · 1 validated source

Report a data issue
ParameterValue
Actuator TypeFlatted (6.35mm Dia) [1]
Actuator Length12.70mm [1]
Angle of Throw30° [1]
Circuit per DeckSP6T [1]
Base Product Number19101 [1]
Contact MaterialSilver Alloy [1]
Contact TimingNon-Shorting (BBM) [1]
Current Rating (Amps)15A (AC), 1A (DC) [1]
Index StopsFixed [1]
MfrGrayhill Inc. [1]
Depth Behind Panel24.13mm [1]
Mounting TypePanel Mount [1]
Number of Decks1 [1]
Number of Poles per Deck1 [1]
Number of Positions6 [1]
Product StatusActive [1]
Series19 [1]
Termination StyleQuick Connect - 0.250" (6.3mm) [1]
Voltage Rating - AC120 V [1]
Voltage Rating - DC120 V [1]
Specification references[1]Grayhill Inc. 19101-06UL vendor product record ↗
