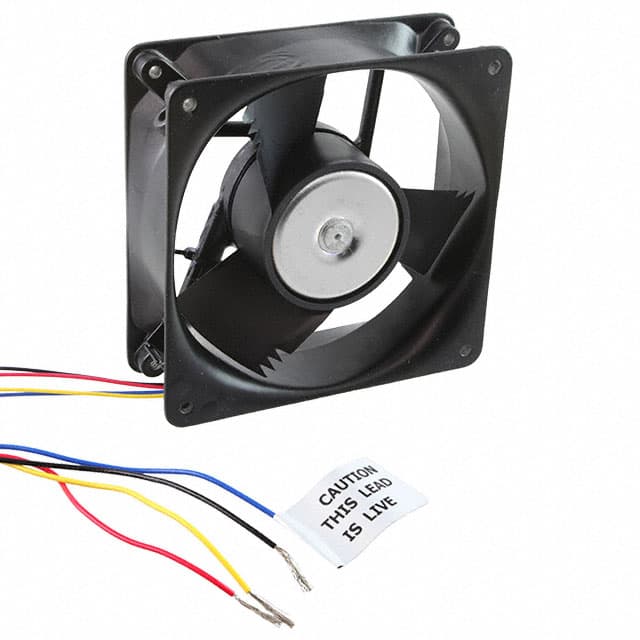

Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image

Exact MPN21 sourced attributes1 source document

Comair Rotron · exact orderable part

17001166A

FAN AXIAL 24VDC MDD24K1E2X-E3

Air Flow: 125.0 CFM (3.50m³/min)
Approval Agency: CE, cUL, UL
Bearing Type: Ball
Current Rating (Amps): 0.340A
Fan Type: Tubeaxial
Features: Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach)

Original manufacturerCommercial terms confirmed per lot

ManufacturerComair Rotron

Mounting typeunknown

PackingBulk

Technical parameters

Technical specifications

21 normalized values · 1 validated source

17001166A technical parameters
Parameter	Value
Air Flow	125.0 CFM (3.50m³/min) [1]
Approval Agency	CE, cUL, UL [1]
Bearing Type	Ball [1]
Current Rating (Amps)	0.340A [1]
Fan Type	Tubeaxial [1]
Features	Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) [1]
Lifetime @ Temp.	55000 Hrs @ 70°C [1]
Ingress Protection	IP68 - Dust Tight, Waterproof [1]
Material - Blade	Plastic [1]
Material - Frame	Aluminum [1]
Mfr	Comair Rotron [1]
Noise	53.5dB(A) [1]
Operating Temperature	14 ~ 158°F (-10 ~ 70°C) [1]
Power (Watts)	8.2 W [1]
Product Status	Active [1]
RPM	3650 RPM [1]
Size / Dimension	Square - 119.13mm L x 119.13mm H [1]
Termination	4 Wire Leads [1]
Voltage - Rated	24VDC [1]
Voltage Range	16 ~ 32VDC [1]
Width	39.12mm [1]
