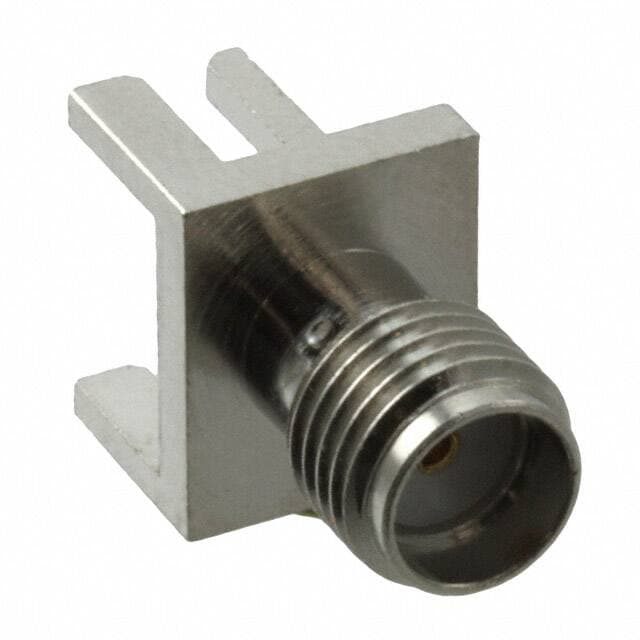

Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image

Exact MPN20 sourced attributes1 source document

Amphenol RF · exact orderable part

132255-12N

Name: 132255-12N
Brand: Amphenol RF

CONN SMA RCPT STR 50OHM EDGE MNT

Original manufacturerCommercial terms confirmed per lot

ManufacturerAmphenol RF

Mounting typeunknown

PackingBulk

Technical parameters

Technical specifications

20 normalized values · 1 validated source

132255-12N technical parameters
Parameter	Value
Base Product Number	132255 [1]
Body Finish	Nickel [1]
Body Material	Brass [1]
Center Contact Material	Beryllium Copper [1]
Center Contact Plating	Gold [1]
Connector Style	SMA [1]
Connector Type	Receptacle, Female Socket [1]
Contact Termination	Solder [1]
Dielectric Material	Polytetrafluoroethylene (PTFE) [1]
Fastening Type	Threaded [1]
Frequency - Max	18 GHz [1]
Housing Color	Silver [1]
Impedance	50Ohm [1]
Mating Cycles	500 [1]
Mfr	Amphenol RF [1]
Mounting Type	Board Edge, End Launch [1]
Number of Ports	1 [1]
Operating Temperature	-65°C~165°C [1]
Product Status	Active [1]
Shield Termination	Solder [1]
