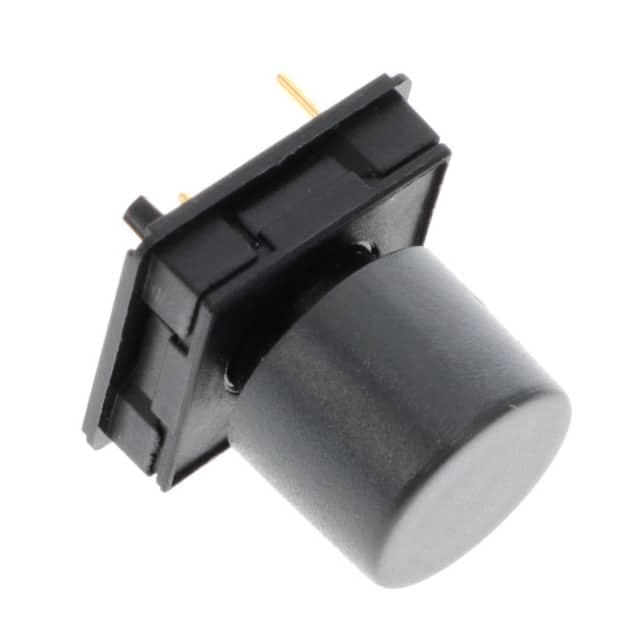

1241.1032.6 representative package visual — not an exact-product photograph
Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image
Exact MPN21 sourced attributes1 source document

SCHURTER Inc. · exact orderable part

1241.1032.6

SWITCH TACTILE SPST-NO 0.05A 24V

Actuator Height off PCB, Vertical
12.25mm
Actuator Orientation
Top Actuated
Actuator Material
Polycarbonate (PC)
Actuator Type
Standard
Base Product Number
1241.1032
Circuit
SPST-NO
Original manufacturerCommercial terms confirmed per lot
ManufacturerSCHURTER Inc.
Mounting typeunknown
PackingBulk

Technical parameters

Technical specifications

21 normalized values · 1 validated source

Report a data issue
ParameterValue
Actuator Height off PCB, Vertical12.25mm [1]
Actuator OrientationTop Actuated [1]
Actuator MaterialPolycarbonate (PC) [1]
Actuator TypeStandard [1]
Base Product Number1241.1032 [1]
CircuitSPST-NO [1]
Contact Rating @ Voltage0.05A @ 24VDC [1]
IlluminationNon-Illuminated [1]
Mechanical Life1,000,000 Cycles [1]
FeaturesTactile Feedback [1]
MfrSCHURTER Inc. [1]
Mounting TypeThrough Hole [1]
Ingress ProtectionIP40 [1]
Operating Force250gf [1]
Operating Temperature-25°C~85°C [1]
Outline12.65mm x 12.65mm [1]
Product StatusActive [1]
SeriesMTG Green [1]
Switch FunctionOff-Mom [1]
Switch Travel0.45mm [1]
Termination StylePC Pin [1]
Specification references[1]SCHURTER Inc. 1241.1032.6 vendor product record ↗
